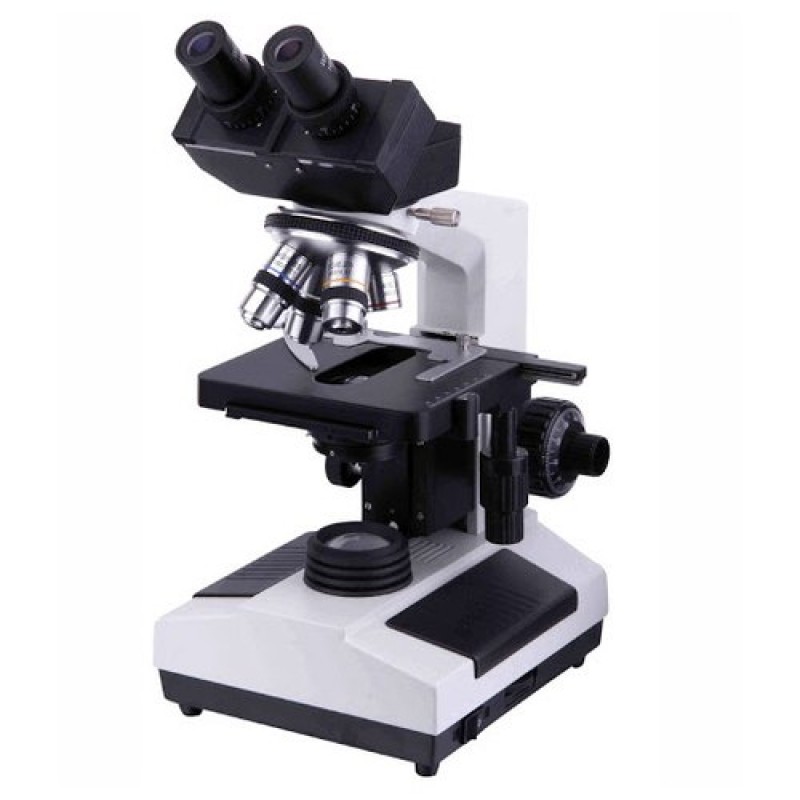

Advanced Educational Biological Microscope

Product Details :

Technical specification: series Education microscopes are manufactured using best quality achromatic objectives, high point eyepieces & with coaxial focusing. The optical system is antifungal treated. Microscope field is illuminated with halogen lamp or optionally can be upgraded to LED (with battery backup).

Body: Rugged, robust, single aluminium die cast, ergonomic design, hand rest for comfortable prolonged use. metalic parts with antirust, antibacterial, corrosion-proof & stain-proof coating, acid resistant texture paint, touch point treated, intensity controller & on/off switch, inbuilt light source, rubber feet. .

Optical system: Achromatic optical system, colour corrected, anti-fungal, anti-bacterial coated (multi-layered hard coated), Anti-reflected Coated, lead free optical glass, colour coded objectives.

Koheler illumination: Halogen 6V - 20W (life 2000 hrs.) for uniform illumination.

Viewing Head: Binocular inclined at 45, sliding head, rotatable through 360, IPD - from 48-76, diopter adjustment on one or both eyepiece.

Nosepiece: Parcentered & parfocal, outward tilted, precise quadruple revolving on multiple ball bearing, with postive click stop.

Eyepiece: Paired, WF 10X, FOV-18mm, multilayered coated, high quality, good contrast, abresion free, aplantic, Anti-fungal & anti-mould treated, precentered, lockable,(single eyepiece in case of monocular head) with rubber gaurd, diaptore adjustment on eyepiece.

Mechanical Stage: Rectangular right/left hand low drive control, hard coating, steel single/double slide holder, stage size 135×140mm, X-Y movement 75-50mm(graduated with verier) on stainless steel ball.

Objectives: 4X, N.A. 0.10, W.D. 30mm, DIN/JIS achromatic, parfocal & precentered, unbreakable container for storage.

10X, N.A. 0.25, W.D. 6.1mm, DIN/JIS achromatic, parfocal & precentered, unbreakable container for storage

40X, N.A. 0.65, W.D. 0.65mm, DIN/JIS achromatic, spring loaded, parfocal & precentered, unbreakable container for storage

100X, N.A. 1.25, W.D. 0.18, DIN/JIS achromatic, parfocal & precentered, oil immered, spring loaded, unbreakable container for storage

Focusing: Co-axial, focusing knob, tension control, upper limit stopper, 25mm stroke high sensitivity focus drive with 0.25 mm per revoluation, fine adjustment 2.5m/Div.

Condenser: Abbe N.A. 1.25 for BF, aspheric lens, separate movement from focusing (rack & pinion) with adjustable iris diaphragm, built-in base illumination, filter holder..

Power supply: SMPS based, wide voltage range, 90V-240V, 50/60Hz

Standard accessories: Cleaning cloth

Vinyl cover

Immersion oil (10ml) Lens Cleaning Solution

Allen key

Fuses - 2 no's

Instruction manual

Warranty card

Blue Filter (frosted & Plain)

Power Cord (country Specific)

Lamp (LED), Mirror Unit (Plano Concave) with miror holder attachment
