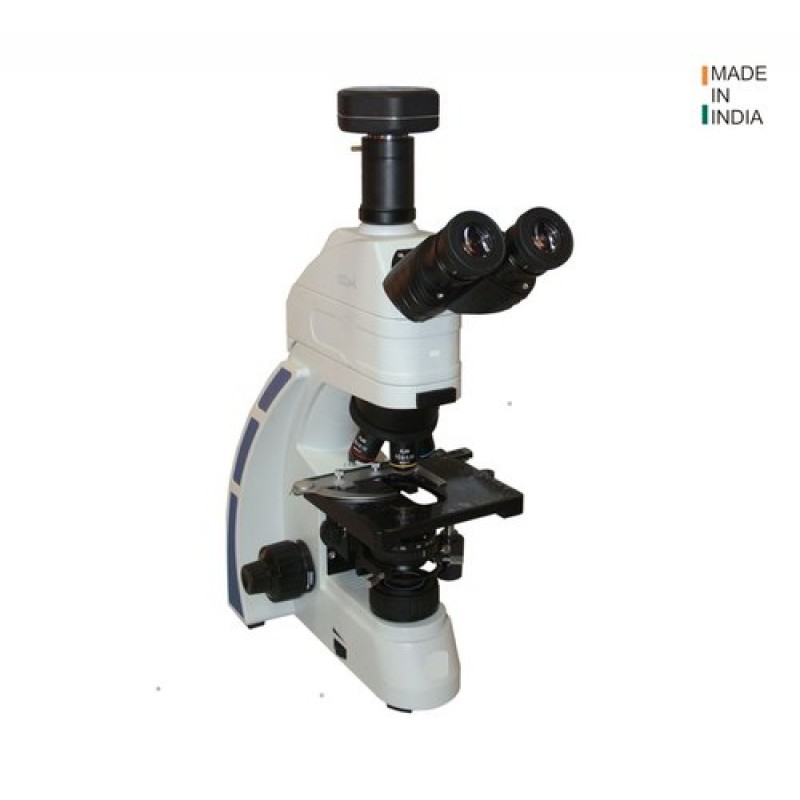

High Performance Biological Microscope
Product Details :
Light Source | Halogen |
Model Name/Number | RL-2908 |
Brand | Reliant lab |
Magnification | 4x,5x,10x,20x,40x,100x |
Features | objective: Japanese Infinity Semi Plan/Plan/Flotar/S-APO/APO objectives |
Power | 90V-240V/50Hz AC (SMPS) |
Color | white & Black |
Eyepiece | Extra wide field,high point with diopter adjustment |
Illumination | Halogen 6V-20W (Life 2000 hrs.) |
Stage | stage size 140x150mm |
Head Type | Ergonomic Sidentopf Binocular/Trinocular Head |
Surface Illumination | Koehler's halogen/LED,intensity adjustable,battery backup,auto cut-off |
Nosepiece | Quadruple/Quintuple with ball-bearing,slot for polarizer & analyser,rubber/metal grip & click stop |
Focusing | Feather Touch Ultra Precise Coaxial (low position),both side,Coarse & Fine with tension control & |
Is It Portable | Non Portable |
Voltage V | 90V-240V/50Hz AC (SMPS) |
Country of Origin | Made in India |
Techanical specification: series has been developed with long term use and great durability in mind. Microscope is easy to operate, robust and durable with infinity optics translating to excellent price/performance ratio meeting the demanding clinical needs. With quality optics microscope is suitable for brightfield,phase contrast,Darkfield & Floursecence techniques It is adapted to the most sophisticated environmental conditions in medical lab
Body: Rugged, single die cast, sturdy, ergonomic design, interchangable, touch point treated, acid resistant texture painted, illumination intensity controller & on/off switch, hinged door at bottom/push pull system at base for easy replacement of LED/halogen, handle/grip on the back, rubber feet, slot for Ana/Pol
Optical system: Universal infinite optical system, color corrected, anti-fungal, anti-mould, anti-bacterial coated, with focal length 200, (multi-layered hard coated), colour coded objectives, parfocal (60mm), parcentered, suitable for BF, DF, PH, Pol etc.
Koehler's Illumination: Koehler's illumination Halogen 6V-20W (Life 2000 hrs.)
Viewing Head: Binocular inclined at 30°, swivelling sidentopf Head, rotatable through 360°, IPD-from 48-76, fixed diopter, upto 50mm adjustable viewing height.
Nosepiece: Inward tilted, Precise Quintuple revolving (with an rubber/metallic ring grip) on multiple ball bearing, click stop mechanism
Eyepiece: Paired, high eye point WF 10X, FOV-20mm, multilayered coated, high quality, good contrast, abrresion free, Aplantic, precentered, built-in diopter adjustment on both eyepiece (±5mm) rubber eyecups.
Mechanical Stage: Rectangular right/left hand low drive control, horizontal, hard coating, double slide holder, stage size 140×150mm, X-Y movement 50-76mm on wire, precision 0.1mm
Objectives: 4X, N.A 0.10, W.D 30mm, plan achromatic, infinite, unbreakable container for storage
5X, N.A 0.15, W.D 12mm, plan achromatic, infinite, unbreakable container for storage
10X, N.A 0.25, W.D 6.1mm, plan achromatic, infinite, unbreakable container for storage
20X, N.A 0.45, W.D 2.1mm, plan achromatic, infinite, unbreakable container for storage
40X, N.A 0.65, W.D 0.65mm, plan achromatic, infinite, unbreakable container for storage
100X, N.A 1.25, W.D 0.18mm, plan achromatic, oil immered, Infinite, spring loaded, unbreakable container for storage
Focusing: Co-axial, tension control, upper limit stopper, coarse adjustable distance 25mm, high sensitivity focus drive with 0.25 mm per revolution, fine adjustment 2.5µm/Div
Condenser: Abbe condenser N.A. 1.25 for BF, separate movement from focussing (rack & pinion), iris diaphragm having centre adjustable, removable filter holder, objective guide marking, with slot for phase/darkfield slider etc.
Power Supply: SMPS based, wide voltage operating range, 90V-240V, 50/60Hz
Standard Accessories: Cleaning cloth
Vinyl cover
immersion oil (10ml)
Allen keys
Fuses - 2 no's
Instruction manual
Warranty card
Blue Filter (frosted & Plain)
Power Cord (country Specific)
Additional Information:
- Delivery Time: 5-6 days
