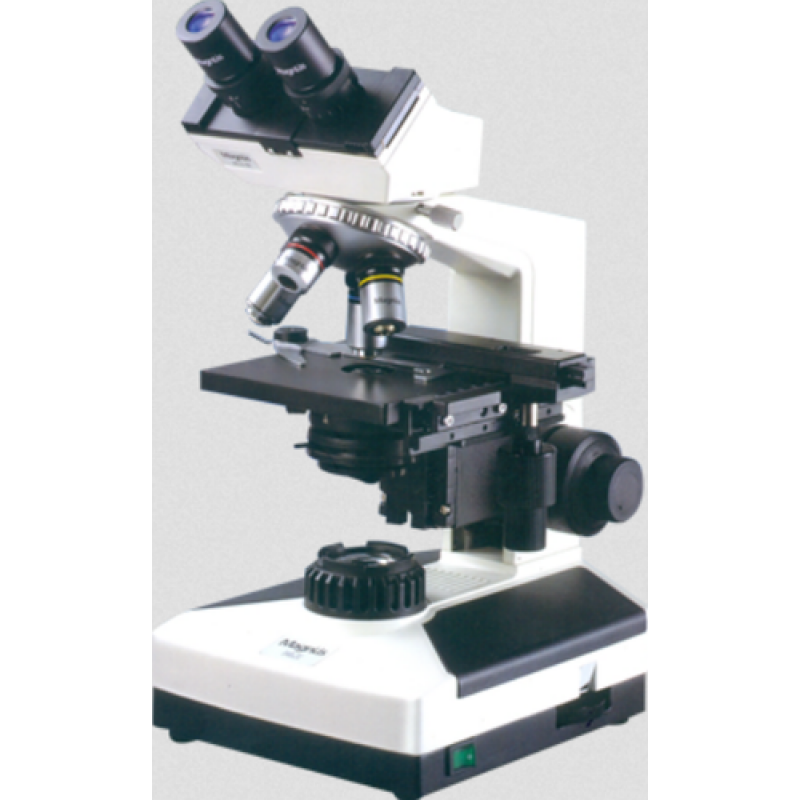

Mangus MLX B Binocular Microscope
Product Details :
Parfocal & Centered Optics :
Minimises use of the fine focusing and stage- control knobs during objective change-over
Optics with Multi-layer Coating
Maximises transmission of light for crisp and bright image
Illumination
Efficient light collector –lens system for optimum brightness
Micron Sensitive Movements
Enables easy manipulation of specimen
Options Available- With halogen or led light source
- Freedon Series with LED light and
- battery backup
Specification ITEM
SPECIFICATIONS
MLX-B
Binocular version
MLX-Tr
Trinocular
Version
Body
Aluminium Die-cast body with all critical movements based on ball bearing and wire guides there by ensuring smooth and precise manipulation
Inclined Observation head
Binocular 45 degree inclined, rotatable through 360 degrees
Trinocular 45 degree inclined, rotatable through 360 degrees
Eyepiece (widefield ) for observation
WF 10x (FN 18) compensating paired eyepiece. Provides relief from eye fatigue and renders color- compensated images of utmost clarity. Compatible with an optionally available eyepiece micrometer
Objectives
Achromat Objectives N.A. W.D. 4X 0.10 29.0mm 10x 0.25 6.3 mm 40x(spring loaded) 0.65 0.53 mm 100x (oil, spring loaded) 1.25 0.20mm
Specification | ||||||||||||||||||||||||||||||||||||||
|
