Introduction:

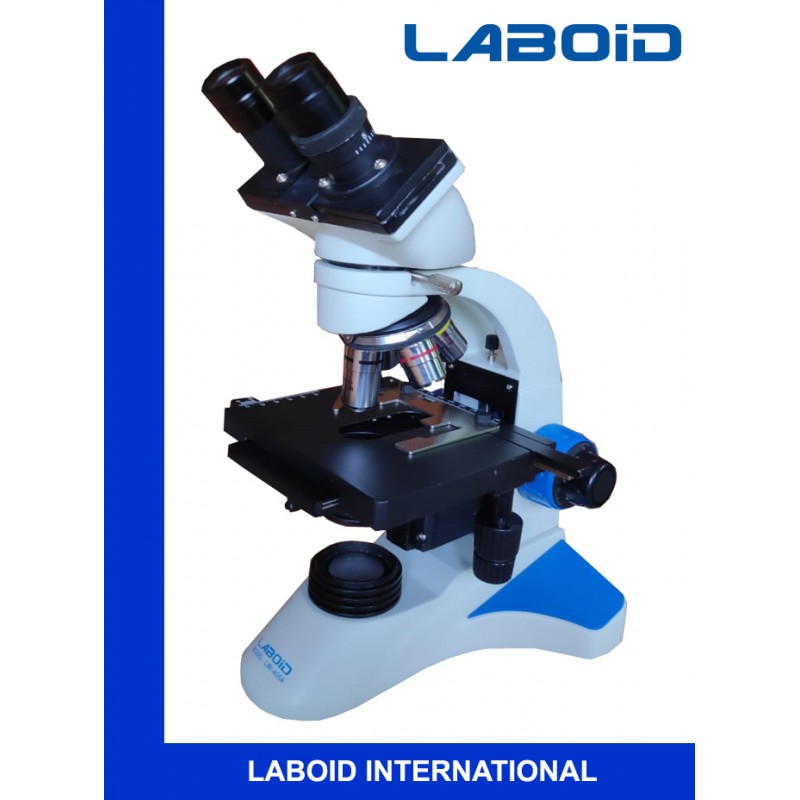

Laboid C Shaped, Highly rigid, vibration five aluminium allay casting with transmitted light, power supply brightness control integrated in the base. The Frame with hollow design is lightweight but stable, strong easy to carry misty gray P.V Paint with blue flaps both sides, is fresh and vivid design.

Viewing Head:

45 degree Sliding Head rotatable 360 degree with antifungal coated prism.

Nose piece:

Ball Bearing loaded, inward quadruple nose piece with precise, positive stops for centred alignment of objectives.

Objectives:

Acromatic ( Anti fungus coated, scratch Proof ) objective 4x, 10x, 40x , 100x oil immersion.

Stage:

Graduated double layer Mechanical stage size 140x132mm With cross travel 90mm x 65mm(4) On ball bearing with co-axial control.

Focusing movement :

Coaxial Coarse and fine adjustment with tightness adjustment range 25mm. Precision: 0.002mm.

Condenses:

N.A 1.25 abbe condenser with iris diaphragm, swing in and out fitter holder.

Light Source:

illumination system LED 3.5w 3v with intensity control regulator, Universal Power supply 110 v- 240v.

Packing:

Thermocol Box & Outer Corrugated box, supplied with vinyl cover, cleaning cloth.
