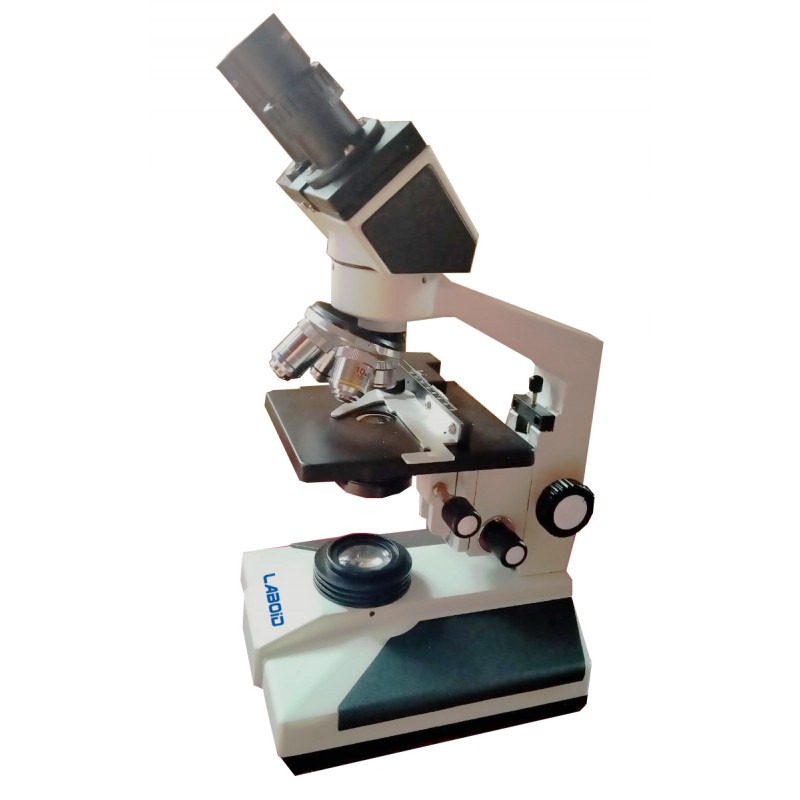

Features:Fixed square stage with built-in mechanical stage, graduated quadruple revolving nose piece.Double lens bright field ABBE condenser(N.A. 1.25) with iris diaphragm and swing out filter holder movable byrack & pinion.
Illuminations Built-in-base LED with electrical system and regulator for Low/Medium/High.Also provided with Plano concave reflecting mirror attachment for daylight use.All the parts are pressure die-cast in special Aluminum alloy ensuring extra strength.Flat-Field Achromatic objectives and high performance eye pieces.All lenses are hard coated for Anti Reflection and reduced light lenses.
Specifications:Total magnification 40X-1600XObjective 45mm DIN achromatic objective 4X 10X 40X(S) 100X(S.oil)Eyepiece WF10X/WF16XArticulated free binocular head Interpupillary distance: 55-75mm;30°inclined,360°rotatable
