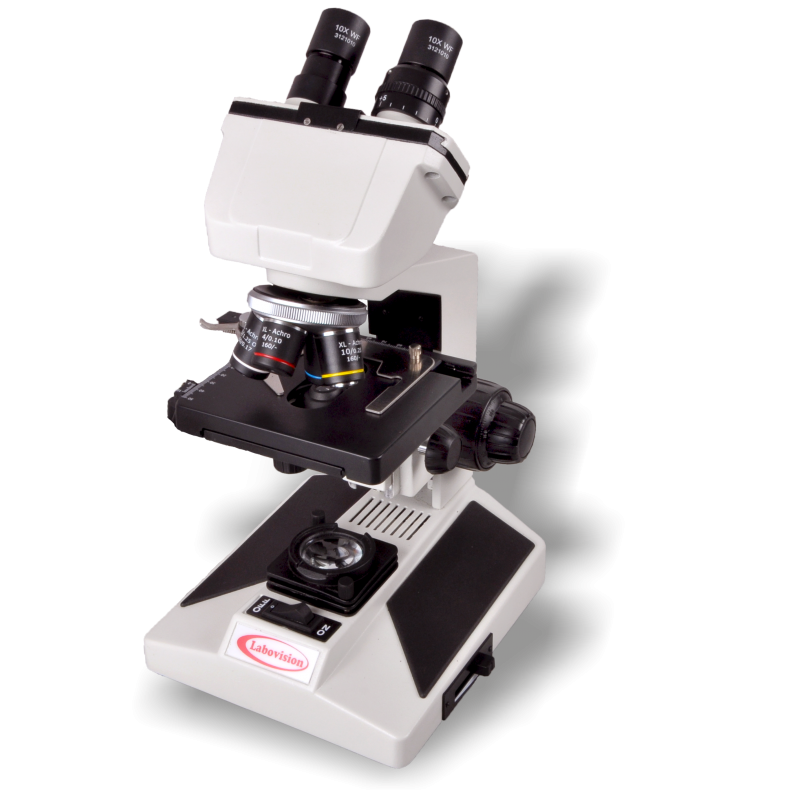

COAX 10B, Sturdy stand with plastic hand rests
Binocular tube, 45° inclined, 360° rotatable, IPD 54-74 mm
Wide Field eyepiece HKW 10x paired
Quadruple Nosepiece (Ball bearing type)
VA series Semi Plan Achromatic objectives
4x, 10x, 40x (SL) and 100x (Spring loaded, oil immersion)
Stage rectangular with mechanical stage cross travel 75 x 50mm
with co-axial control Sub-stage ABBE condenser NA 1.25 with
aspheric lens. Iris diaphragm and special day light blue filter
Co-axial coarse and fine focusing mechanism with tension
control
Illumination system 6V-20W Halogen with intensity control.
Power Input 220V AC
Packed in moulded styrofoam box, with operation manual, dust
cover and cleaning cloth
