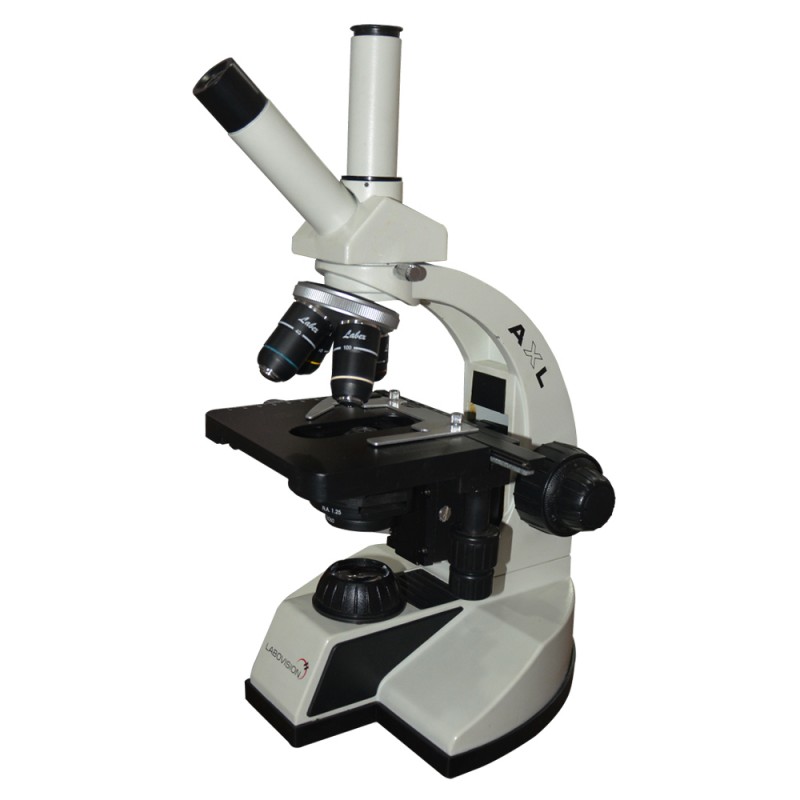

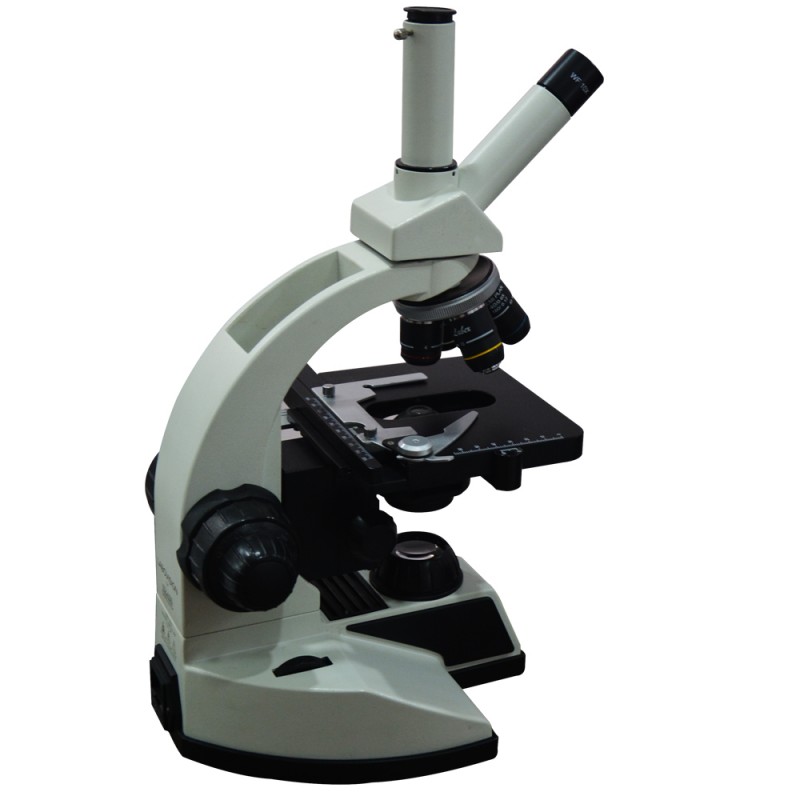

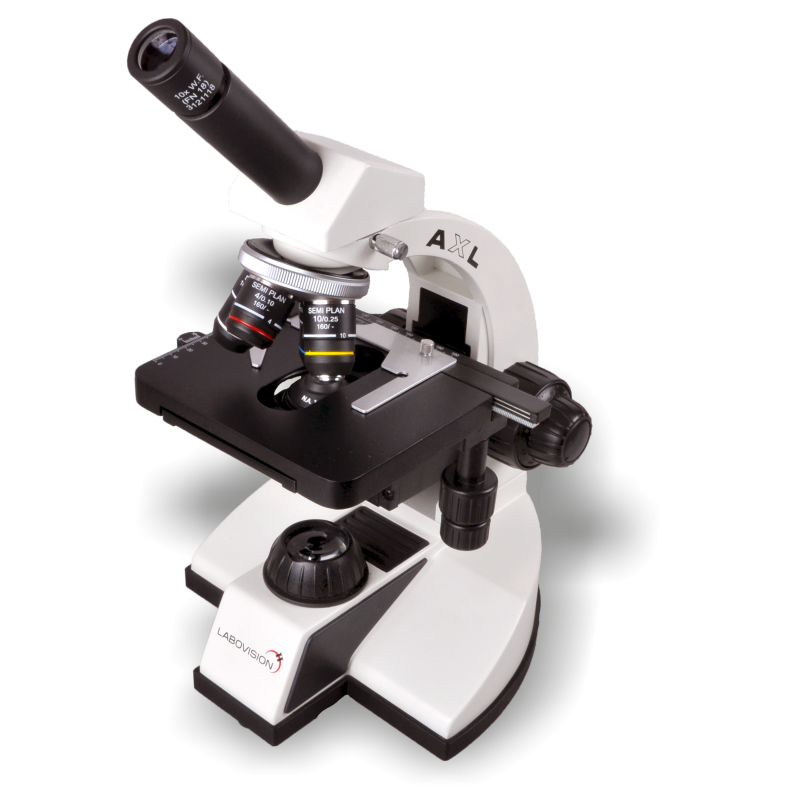

AXL C Shaped Sturdy stand
Monocular tube, 45° inclined, 360° rotatable
Wide Field eyepiece WF 10x/18mm
Quadruple Nosepiece (Ball bearing type)
BJ series DIN Semi Plan Achromatic objectives
4x, 10x, 40x (SL) and 100x (Spring loaded, oil immersion)
Stage rectangular size 142 x 133mm double plate with
mechanical stage cross travel 75 x 50mm
on ball bearing with co-axial control
Sub-stage ABBE condenser NA 1.25 with aspheric lens.
Iris diaphragm and special day light blue filter
Co-axial coarse and fine focusing mechanism with tension
control
Detachable illumination system 6V-20W Halogen with intensity
control. Power Input 220V AC
Packed in moulded styrofoam box, with operation manual,
dust cover and cleaning clot
