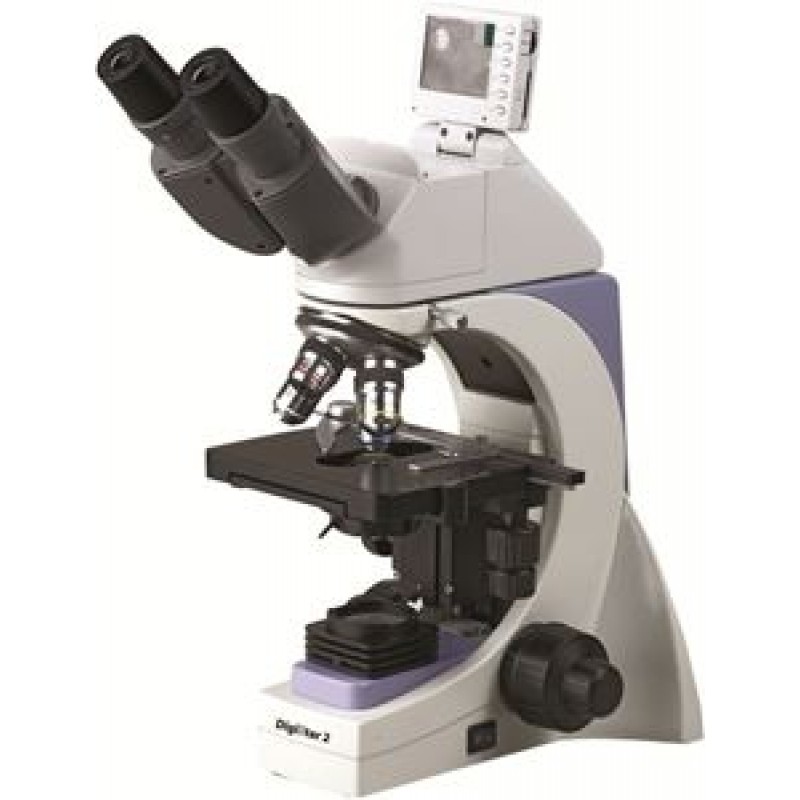

With the emergence of mobile gadgets, the idea of being mobile is essential and in regard to this LABOVISIONTM has developed the all new DG Star 2 which comes with an interactive microscope screen ideal for both, the teacher and students.
SPECIFICATION
STAND | C shaped, corrosion resistant, Anti mould treated, single mold modular stand |
EYEPIECES | WF 10X/18mm Paired with Eye-guards. Anti Mould Treated. Optional WF 10X/18mm, WF 15x/16mm |
VIEWING BODY | 30° Inclined Siedentopf Binocular tubes, 360° rotatable with IPD 48-75 mm and dioptric adjustment with in-built 2.5”” colour TFT LCD display, 100 maximum elevation angle |
FOCUSING SYSTEM | Ergonomic low position co-axial coarse and fine focusing system on ball bearing guide ways. Tension adjustment ring and unique Focus lock provided |
NOSEPIECE | Quadruple Reversed (Inward Tilt) nosepiece, with rubber grip |
MECHANICAL STAGE | Double Plate 140mm×140mm. X-Y travel 75mm×50mm, spring clip Slide holder |
ILLUMINATION | Illumination system 6V-20W Halogen with intensity control. Universal Power Supply 100 V to 240 V, AC 50-60 Hertz, CE Compliant. |
OBJECTIVES | Finite System / Infinity Plan Achromats Objectives, Anti Mould Treated |
CONDENSER | Movable , Swing-out Condenser 1.25 N.A, daylight blue/green filter & Iris diaphragm. Centrable |
OPTICAL SYSTEM | Infinity Optical System (IOS) ( OPTIONAL) | |
BJ SERIES SEMI-PLAN | 4x/NA 0.10, 10x/NA 0.25, 40x/NA 0.65 SL, 100x/NA 1.25 SL, Oil ( Finite) | |
IP SERIES PLAN | 4x/NA 0.10, 10x/NA 0.25, 40x/NA 0.65 SL, 100x/NA 1.25 SL, Oil ( Infinity) | |
DIGITAL PART | 3.0 Mega Pixel CMOS Chip, Resolution static image 2048 x 1536 , video 320 x 240. Memory 32Mb build in memory and expandable to MAX 1GB SD card, System Windows 2000, XP & Vista. | |
