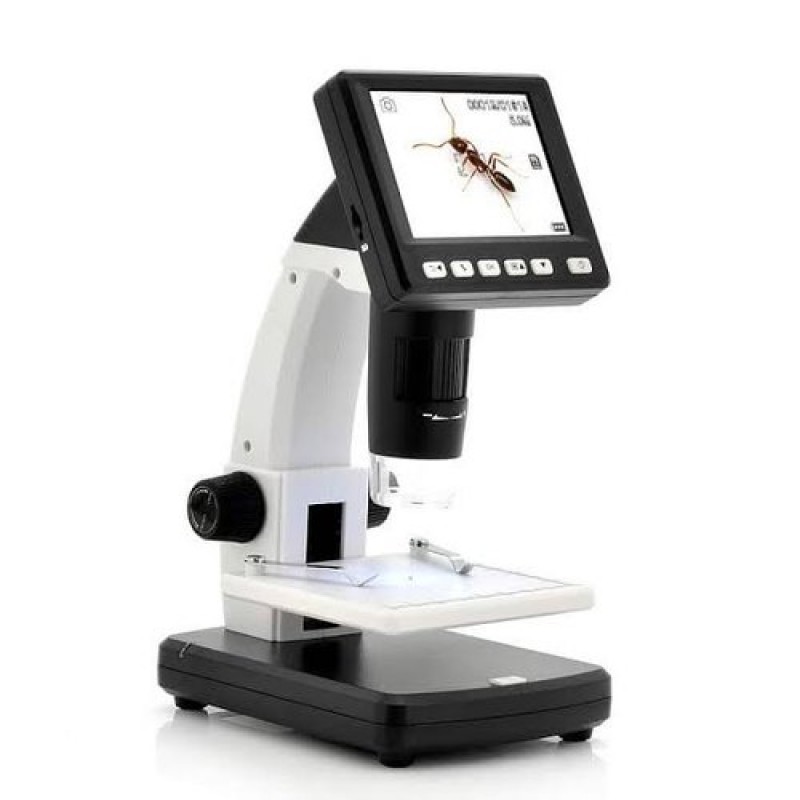

Digital Lcd Microscope
Product Details :
Portable | Yes |
Color | White & Black |
Is It Portable | Portable |
Brand | METLAB |
Automation Grade | Semi-Automatic |
Material | Defined |
Design | Defined |
Binocular observation head with lcd screen
siedentopf observation head inclined at 30° rotatable at 360°. 8 inch lcd screen. Built-in digital camera with rca, S-video & USB-2 output with 3. 1m resolution. Internal media card reader / writer.
Eyepiece
- Wide field eyepiece 10x (paired) fov 18mm.
Objectives (color corrected infinite system)
- CCIS plan achromatic 4x
- CCIS plan achromatic 10x
- CCIS plan achromatic 40x (s l)
- CCIS plan achromatic 100x oil( s l)
Mechanical body
- Co-axial focusing system with pre-focusing lever & tension adjustment ring
- The slow motion has 1div=0. 002mm.
- Reverse angle quadruple nosepiece revolves on ball bearing.
- Mechanical stage size 125mmx135mm having low positioned co-axial controls on ball bearing guide ways.
- The transmitted illuminator has 6v-20w halogen lamp with intensity control knob.
Sub stage condenser
- Abbe condenser n. A. 1. 25 with iris diaphragm
Standard accessories
- Grey & blue filters, halogen bulb 6v/20w, styro foam molded pack
