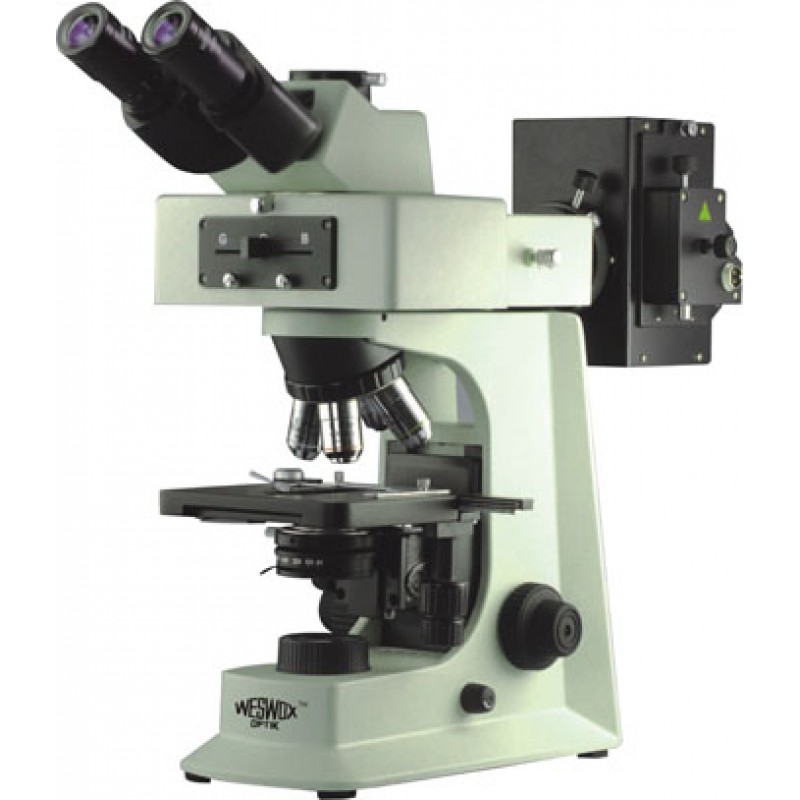

Fluorescence Research Microscopes
Viewing your material examinations in the best light is our top priority.
Wide-field eyepiece, high light illumination and superior optical parts make the image clear, sharp and bright.
Backward nosepiece with superior objectives make the best viewing effect and more space for the operation.
High precision focusing adjustment system and humanized configuration design provides operator more comfort.
Specifications:
Warranty Information 2 Years parts.
1 year Electronics
Stand | Single mold sturdy stand with anti rust materials. Extended base for better stability. | |||
Observation Head | TRINOCULAR observation head inclined at 40o and 360o rotatable. Diopter adjustment ring on ocular tube interpupillary distance from55 to 75mm. The light path selector lever directs either 100% to Binocular or 80% to the vertical photo tube & 20% to Binocular Head. | |||
Eyepiece | Wide Field Eyepiece 10x (PAIRED) FOV 22mm anti-fungal. | |||
Nosepiece | Reverse angle quadruple nosepiece revolves on ball bearing with positive indexing. Soft rubber knurled grip on nosepiece. | |||
Objectives | CIS Fluorescence objective 4x. CIS Fluorescence objective 10x CIS Fluorescence objective 40x (SL). CIS Fluorescence objective 100x (SL) Oil Immersion. | |||
Stage | Mechanical stage with Size 135mmx142mm, supported on ball bearing guideways and having low positioned co-axial controls for stage movement. | |||
Focusing | Co-axial focusing control with ball bearing guideways & large knobs, pre focusing lever & tension adjustment ring and rubber tubes for excellent grip. The slow motion has 1DIV=0.002mm | |||
Condenser | Achromatic aplanatic condenser NA 1.3. | |||
Illumination | Built-in base illumination system incorporates 6V/30W halogen Tungsten bulb, AMPS and intensity Control knob. The system is based on Koehler's principle | |||
Packaging contents | Mercury Lamp 100W, Fuse Tube, Power Cord, Instruction Manual, Dust Cover, STYROFOAM molded box. |
Light Source | Transmitted 6V/30W Tungsten Halogen bulb. Epi-Fluorescence source 100W high pressure mercury lamp. |
Filter | B Excitarion (400NM-490NM) Standard. C Excitarion (510NM-550NM) Standard |
