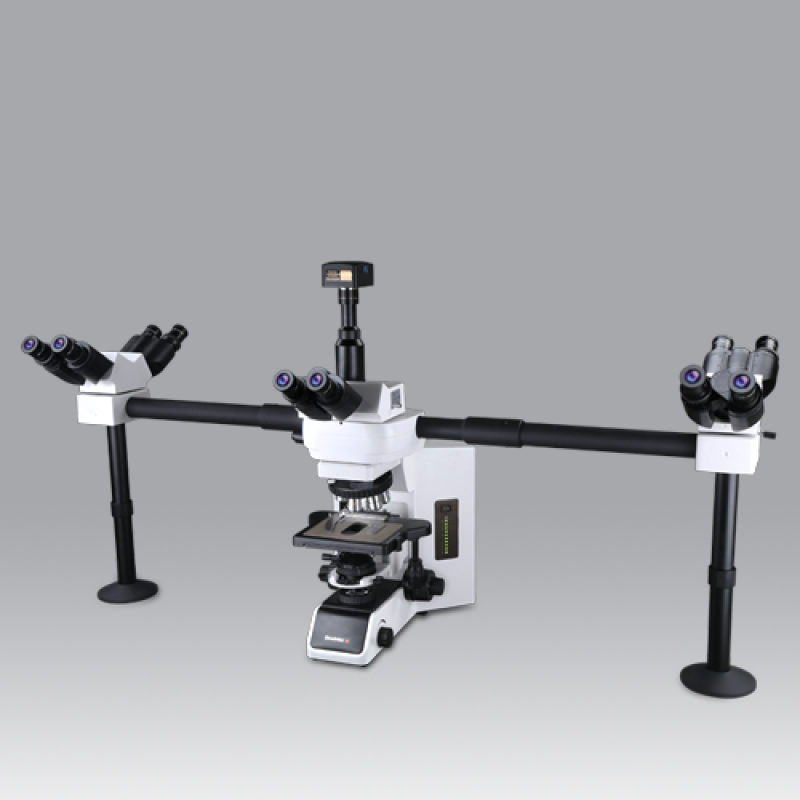

Five Head Teaching Microscope (Anti fungus Coated) Model : Premium Pentex

Product Details :

Observation Heads

• Trinocular observation head inclined at 30rotatable at 360 (One set)
• Vertical phototube for micro photography
• Binocular observation heads inclined at 30 fixed on adjustable stands. (Four Sets)

Eyepiece

• Wide field Eyepiece 10X (paired) F.O.V. 22mm.

Objectives

• CCIS Plan Achromatic 4X
• CCIS Plan Achromatic 10X
• CCIS Plan Achromatic 20X
• CCIS Plan Achromatic 40X (S L)
• CCIS Plan Achromatic 100X (S L) Oil

Mechanical  Body

• Co-axial focusing control with large knob, Pre focusing lever & tension adjustment ring .
• Reverse angle sextuple nosepiece revolving on ball bearings.
• Mechanical stage size 185mmX142mm & having low positioned co-axial controls on ball bearing guide ways.

Illuminator

• Koehler's illumination system with 12V-100W halogen lamp, adjustable brightness.

Sub Stage Condenser

• Swing out  top lens.Condenser N.A 0.9/1.25 with swing out filter holder. Iris diaphragm


Pointer

• color LED pointer, brightness adjustable.

Standard Accessories

• Blue & grey filters, halogen bulb 12V/100W, operating manual, dust cover
