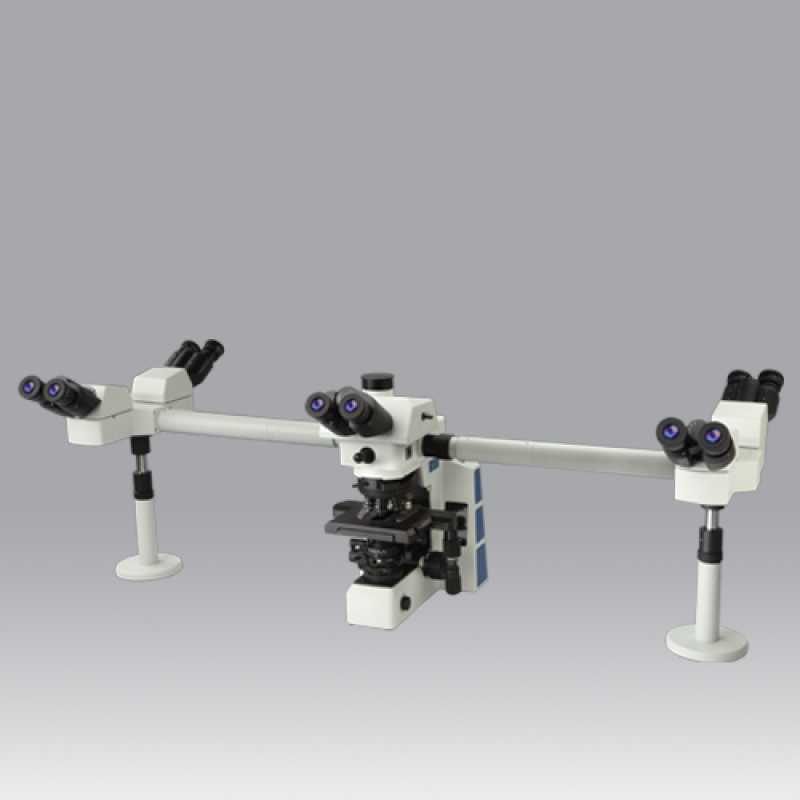

Five Head Trinocular Teaching Microscope Model : Ultima Pentex

Product Details :

Trinocular Observation Head

• Siedentopf observation head inclined at 30 rotatable at 360.
• Vertical phototube for micro photography.

• Diopter adjustment ring on ocular tube.

• Inter-pupillary distance from 48mm to 75mm.

• Binocular observation heads, inclined at 30º Fixed on adjustable stand (Five sets).


Eyepiece (Anti fungus coated)

• Extra wide field 10X (paired).
• F.O.V. 25mm.Ocular dia 30mm.

Objectives (Infinite Corrected)

• Anti Mold & Anti fungus coated
• Plan Achromatic 2X
• Plan Achromatic 4X

• Plan Achromatic 10X

• Plan Achromatic 20X

• Plan Achromatic 40X

• Plan Achromatic 100X


Color LED Pointer

• Dual Color LED Pointer Brightness adjustable.

Sub Stage Condenser

• Swing out front lens, abbe condenser N.A. 0.9/1.25, filter holder and iris diaphragm.

Illumination System

• 12V/100W halogen lamp house for transmitted light, centre pre-set, intensity adjustable.

Standard Accessories

• 12V/100W halogen tungsten bulb.

• Power cord and cedar oil.


Mechanical Body

• Co-axial focusing system with large knobs, PRE-FOCUSING LEVER & TENSION ADJUSTMENT RING.
• Reverse angle septuple nosepiece on ball bearing. Slot for Polarizer & DIC.

• Double plate Reckless layer Mechanical stage is 187mmX167mm.

• The mechanical stage has low positioned co-axial controls on ball bearing guide ways.

• Fine division 0.001mm corse, per rotation, fine stroke 0.1mm per rotation, moving range : 80mm X 55mm.

• Built in transmitted filter LBD/ND6/ND25.
