Senior Laboratory & Medical Microscope
SIMPLE & PRECISE
Designed for routine enhanced bright field applications in the Professional Laboratory as well as in Colleges and Further Educational establishments.
PREMIUM quality KEOWA optics provides clear and bright images and 40% larger field of view as compared to ISI marked microscopes.
Black stoving finish and hard instrumental chromium plating will accent any classroom environment.
Specifications:
Warranty Information 2 Years parts.
3 years KEOWA optics.
| Stand | Rigid & Heavy single mold aluminum die-cast stand | ||
| Observation Head | MONOCULAR head inclined at 45o and rotatable in 360o fitted with highest quality prism to ensure highly accurate collimation for stain free observation | ||
| Eyepiece | KEOWA H6x and HKW 10x focusable, lockable, anti-fungal eyepieces with foldable eyeguards | ||
| Nosepiece | QUADRUPLE ball bearing revolving nose piece with POSITIVE click stop & rubber grip. | ||
| Objectives | KEOWA Achromatic objectives 4x/NA 0.10, 10x/NA 0.25, 40x/NA 0.65(SL) and 100x/NA 1.25(SL) Oil imm | ||
| Stage | RECTANGULAR stage of size 120x140mm with graduated low positioned co-axial controls for X & Y movement. | ||
| Focusing | SEPARATE coarse and highly sensitive graduated fine focusing knobs reading upto 0.002mm and Slide Safety topper | ||
| Condenser | Substage condenser NA 1.25 fitted with iris diaphragm and swing out filter holder with blue filter moving up and down through rack and pinion mechanism | ||
| Illumination | Halogen 6V-20W illumination with central knobs for LOW/MED./ HIGH illumination. Upto 2,000 hours of Halogen Lamp life. Universal input 100V - 240V AC, 50/60Hz. | ||
| Packaging contents | Packed in shockproof Styrofoam molded box or in a plywood cabinet having provision for placing eyepieces, objectives Nylon Dust cover Detachable power cord and 3 pin-plug |
| Accessories (optional) | Dark field and phase contrast kits | ||

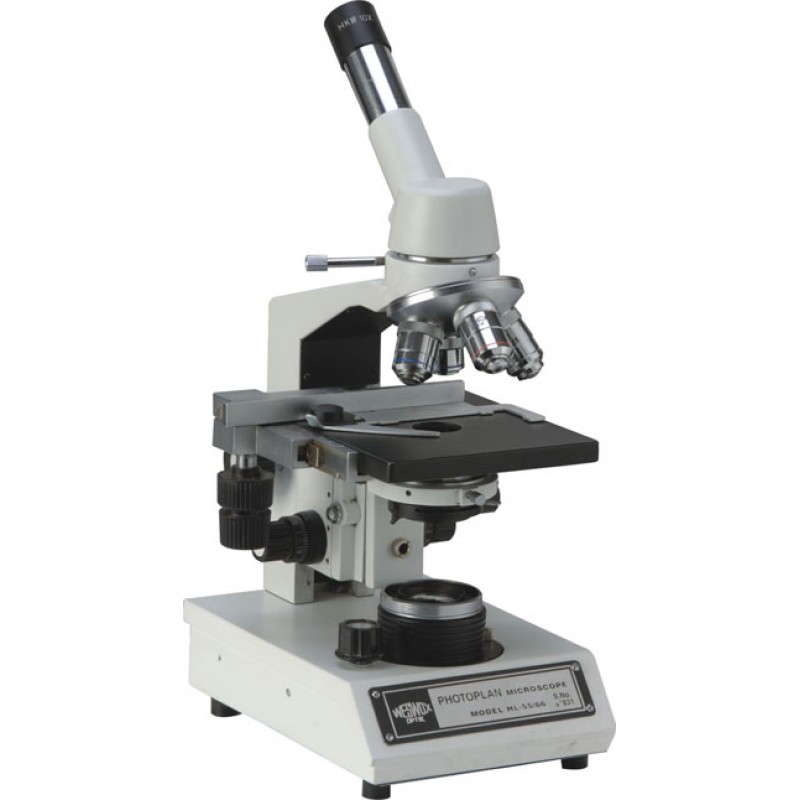

Photoplan Microscope HL-55
