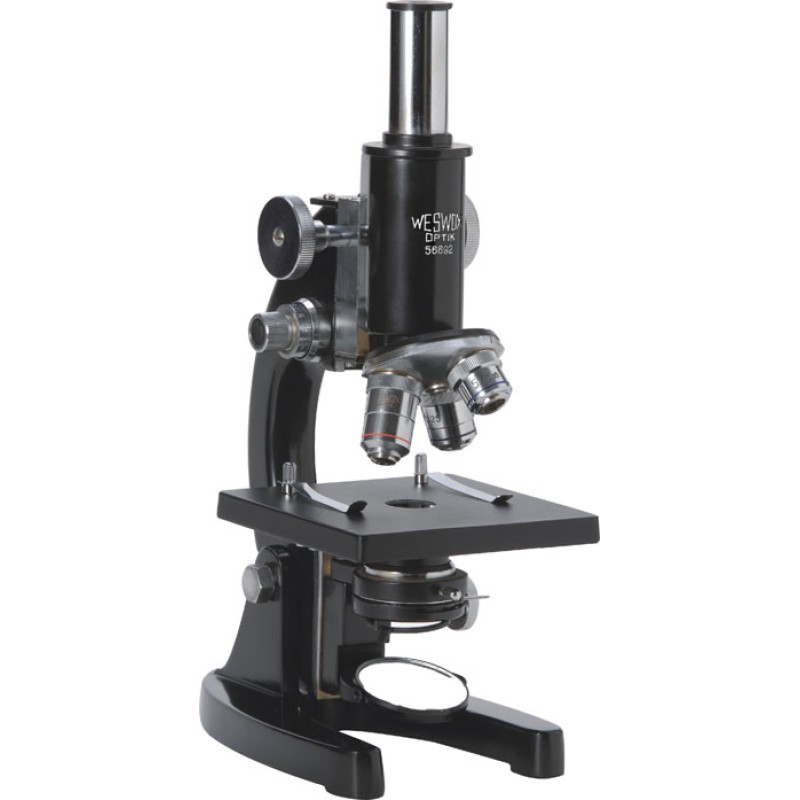

Advance Student Microscope
HL- SERIES IDEAL FOR THE CLASSROOM
robust, reliable metal construction and excellent optical performance.
Extremely simple to use, this instrument is ideal for the examination of everyday objects in fascinating yet understandable detail. Highly recommended for Primary Science Education and Field Study Centres.
Black stoving finish and hard instrumental chromium plating will accent any classroom environment.
Specifications:
Warranty Information 2 Years parts.
| Body | MONOCULAR body with horse shoe shaped base hinged type, versatile designed inclinable to 90o assembled from DIE-CAST parts. |
| Viewing Tube | MECHANICAL tube of length 160+1mm. |
| Eyepiece | H10x & H15x. |
| Nosepiece | TRIPLE revolving nosepiece with positive centering and click stop. |
| Objectives | 5x, 10x & 45x (SL). |
| Stage | FIXED square stage of size 120mm X 120mm with Phosphorus stage clips. |
| Focusing | RACK AND PINION knob provided for sensitive focusing. |
| Knobs | SEPARATE coarse and fine motion knobs with very precise & accurate graduated fine motion reading to 0.002mm, for fine adjustment and a stopper to prevent damage to glass microslides and objective lenses. |
| Condenser | TWO LENS ABBE condenser NA 1.25 with continuously variable iris diaphragm and swing-out filter holder. |
| Illumination | STANDARD plano concave mirror 50 mm dia. in fork for natural light, replaceable by a substage microscope lamp. |
| Magnification | 50x-675x | |||||||||||
| Packaging contents | Packed in shockproof Styrofoam moulded box or in a plywood cabinet having provision for placing eyepieces and objectives and dust cover. | |||||||||||
| Accessories (optional) | Detachable graduated mechanical stage. Substage illuminator ML-1. Workable on 220 volts direct. Huyenian eyepiece H5x or H10x or H15x Pointer Eyepiece 5x or 10x or 15x. Oil immersion 100x (SL) NA 1.25 |
Student Microscope HL-99
- Views: 274
-
The Western Electric and Scientific Works - Vendor Type: Manufacturer, Exporter
- Product Code: WESWOX0004
- Availability: In Stock
- ₹0
