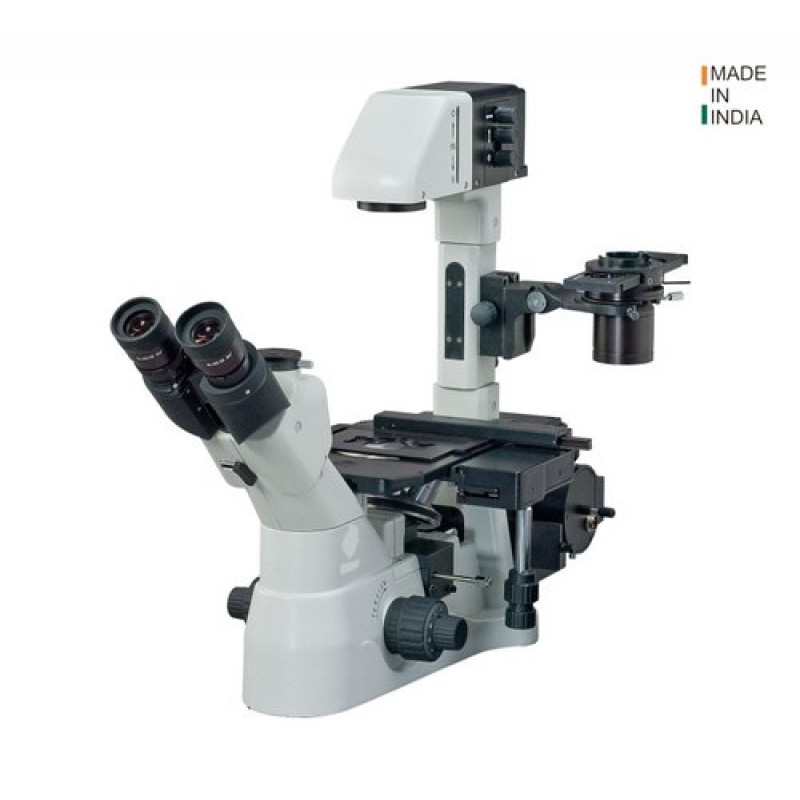

Inverted Medical Biological Microscope

Product Details :

Technical Specification: High-performance optics, ergonomic design, and LED illumination, it is ideal for cell culture, micromanipulation, documentation of immunostained specimens, and routine live cell examinations. Microscope features high-quality Phase contrast, excellent modulation contrast and brilliant fluorescence. Die Cast body is robust, stable , plenty of space to work with tools, long working distances/swing out condenser to accommodate large culture flasks and a stable cool illumination make work at the microscope easy and convenient.

Body: Rugged, ergonomic design, touch point treated, acid resistant texture painted, skin friendly, intensity controller & on/off switch, auto cut off, rubber feet

Optical system: Universal infinty corrected, colour corrected, aberration corrected, anti-fungal, anti-bacterial coated (multi-layered hard coated), colour coded objectives, parcentered

Koheler`s Illumination: ECO illumination 5W LED Life 30,000 hrs, equivalent to 100W halogen, suitable for bright field, phase

Viewing Head: Binocular inclined at 45°, Sidentopf Head, rotatable through 360°, IPD - from 48-76

Nosepiece: Inward tilted, precise quadruple nosepiece revolving on multiple ball bearing, click stop mechanism for smooth and accurate alignment, having ribbed grip for easy rotation

Eyepiece: Paired, high eye point WF 10X, FOV-22mm, multilayered coated, antifungal coated, high quality, good contrast, abrresion free, aplantic, precentered, diopter adjustment on both eyepiece (±5mm)

Mechanical Stage: Rectangular, triple plate, fixed size 250(X) × 160(Y) mm, attachable mechanical stage : 120(X) × 78(Y), (auxiliary stage 70mmx180mm) with low drive co-axial control, with co-axial low position stage movement knob, with glass insert, accepts different types of micro-testplate, glass slide holder & culture flask holder, acrylic plate ring, universal holder for holding all types of plates

Objectives: nfinity, long working distance, plan achromatic 4X, N.A. 0.13, W.D 22mm, unbreakable container for storage

nfinity, long working distance, plan achromatic 10X, N.A. 0.3, W.D 7.94mm, unbreakable container for storage

nfinity, long working distance, plan achromatic 20X, N.A. 0.45, W.D 7.66mm, unbreakable container for storage

nfinity, long working distance, plan achromatic 40X, N.A. 0.65, W.D 3.71mm, cover glass 1.2mm, unbreakable container for storage

Phase slider: Pre-centered phase slider for 4X/10X, 20X/40X, empty position for bright field

Focusing: Co-axial, coarse & fine, coarse range-9mm, fine precision 2µm, coarse stroke 37.7mm, tension control, upper limit

stoppe

Condenser: Abbe condenser N.A. 0.3, dismountable, working distance 72mm

Power supply: SMPS based, wide voltage range, 90V-240V, 50/60Hz

Additional Information:

• Delivery Time: 5-6 days
