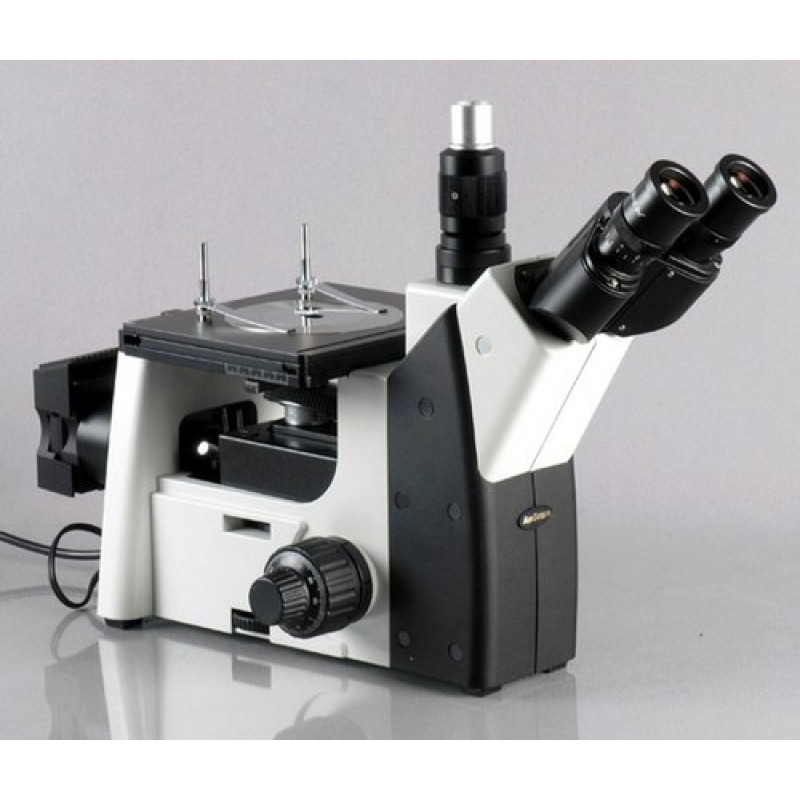

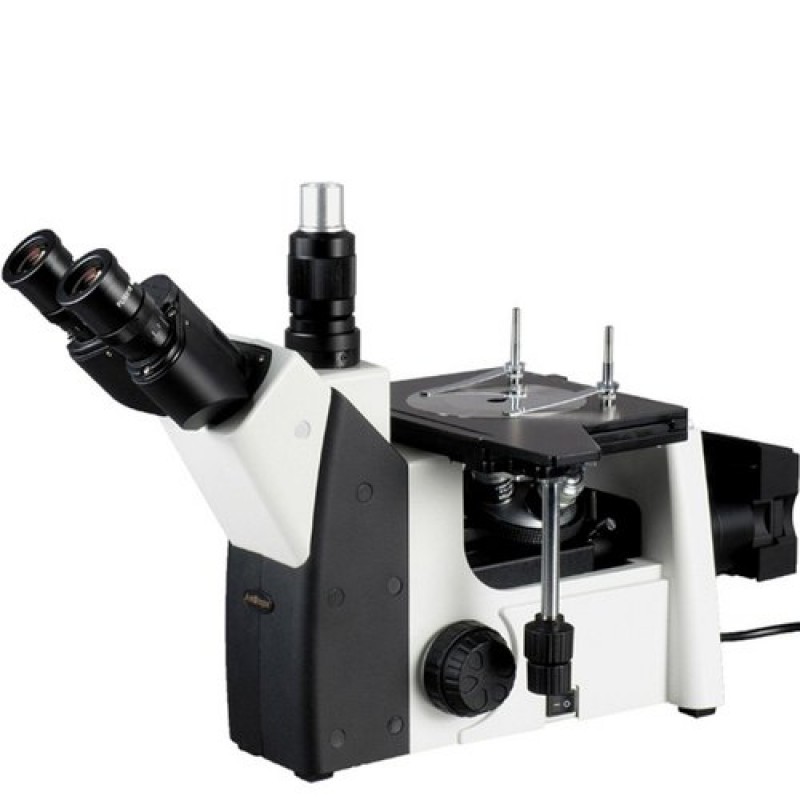

Inverted Metallurgical Microscope
Product Details :
Minimum Order Quantity: 1 Piece
Magnification | 1000x, 1500x, 2000x |
Model Number/Name | FMI-1 |
Focusing Range | 1000x |
Moving Range | 125/125 |
Color | black and white |
Material | ms |
Is It Portable | Non Portable |
I Deal In | New Only |
Inverted Metallurgical Microscope: [MODEL : FMI-1]
Used to identify and analyze composite structures of all kinds of metal and alloy material. Widely used in metallurgical lab for casting quality checking for inspection of raw materials or microstructure analysis after material handling It’s used for metallographic analysis of iron and steel, Ferrous & non-ferrous material, casting & forging , coating-thickness & other metallurgical analysis of metals.

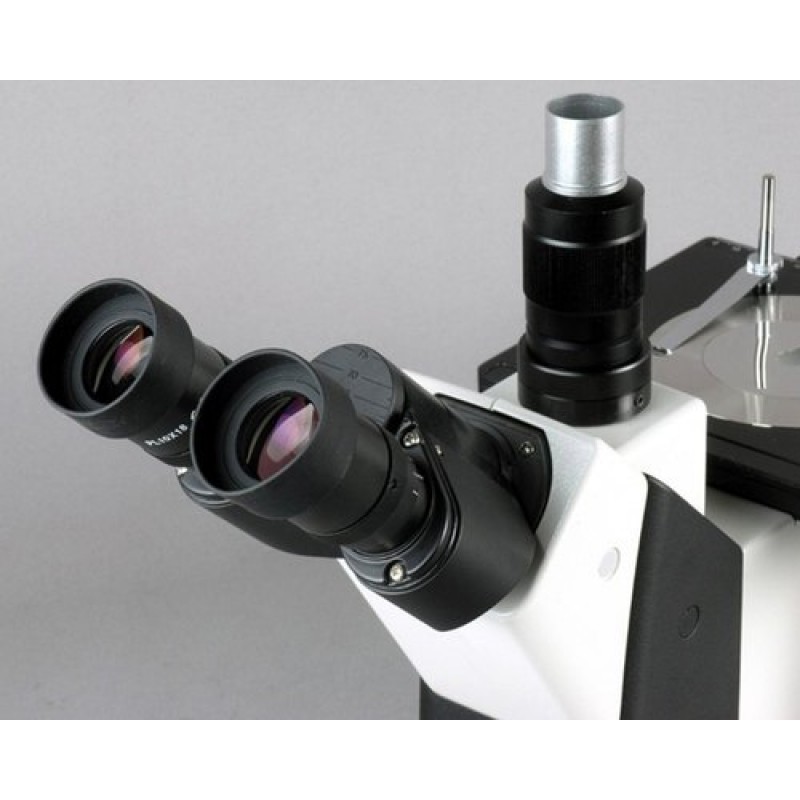

TRINOCULAR OBSERVATION HEAD
- Side and top observation head inclined at 45°.
- Vertical phototube for micro photography light split (80:20).
- Diopter adjustment ring on ocular tube (±5).
- Interpapillary distance from 54mm to 75mm.
EYEPIECE
- Wide field eyepiece 10X, 15X (Paired)
- FOV 18mm
OBJECTIVES (INFINITY CORRECTED)
- M Long Working Distance Plan Achromatic 5X
- M Long Working Distance Plan Achromatic 10X
- M Long Working Distance Plan Achromatic 20X
- M Long Working Distance Plan Achromatic 50X
- M Long Working Distance Plan Achromatic 80X (optional)
- M Long Working Distance Plan Achromatic 100X (optional)
