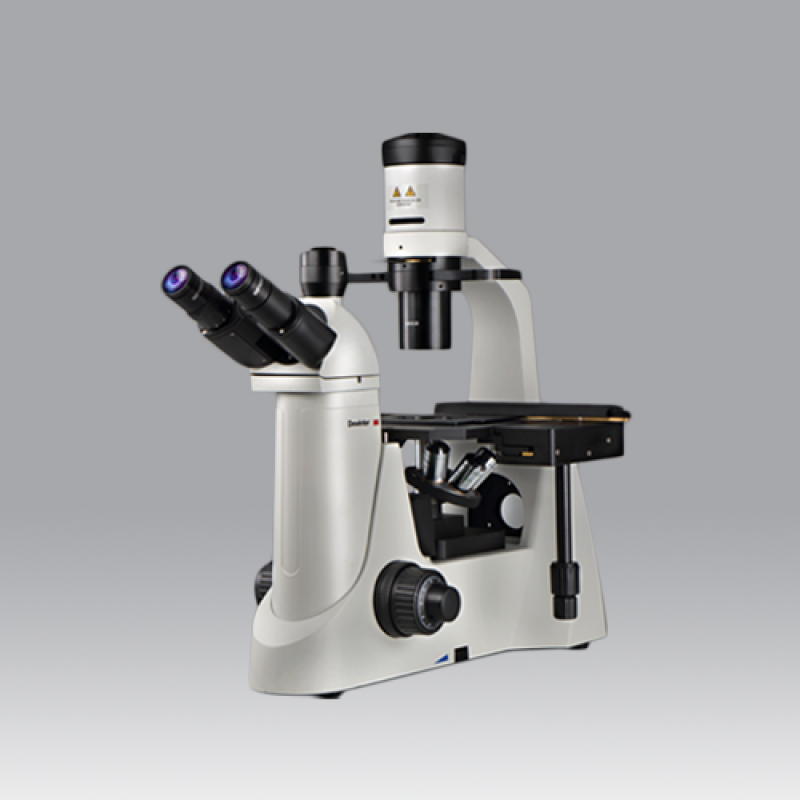

Inverted Tissue Culture Microscope Model: Victory Plus
Product Details :
Brand | Dewinter |
Usage/Application | Research |
Model Name/Number | Victory Plus |
Voltage | 220 V |
Eyepiece | 10X (paired) F.O.V. 22mm |
Inter-Pupillary Distance | 54mm to 75mm |
Mechanical Stage Size | 250mm X 160mm |
Trinocular Observation Head
- Siedentopf Observation head inclined at 45 Deg.
- Vertical phototube for micro photography.
- Diopter adjustment ring on ocular tube.
- Inter-pupillary distance from 54mm to 75mm.
Eyepiece
- PWF 10X (paired) F.O.V. 22mm and centering telescope.
Objectives (Anti fungus coated)
- LWD Plan objective 4X
- LWD Plan objective phase 10X
- LWD Plan objective phase 20X
- LWD Plan objective phase 40X
Mechanical Body
- Quintuple nosepiece. PRE-FOCUSING LEVER & TENSION ADJUSTMENT RING are on focusing mechanism.
- Hard coated fixed mechanical stage is 250mm X 160mm, slider clip, extension plate and co-axial moveable stage can be assembled.
Illumination System
- 6v/30w Halogen Bulb. External transformer, intensity adjustable.
Sub Stage Condenser
- N.A-03 Koehler illumination condenser, with Phase- adjustable slide plate, long working 72 mm.
Filter
- 45mm green interference filters, color temperature change filter, infrared eliminate filter.
Standard Accessories
- Electric Cable, Fuse, Vinyle dust cover, Operating Manual, 12V/20W Halogen bulb, Styrofoam molded pack.
