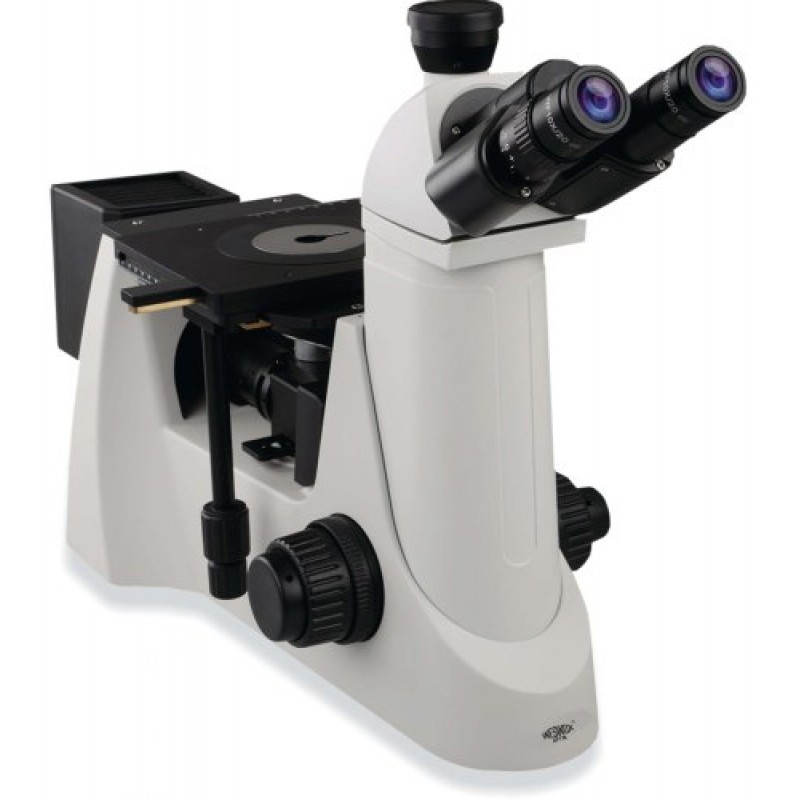

Inverted Trinocular Metallurgical Microscope
Product Details :
Usage/Application | Laboratory |
Brand | Metlab |
Magnification | 50 X to 2000 X |
Interpupillary Distance | 54 mm to 75 mm |
Moving Range | 75 mm x 40 mm |
Mechanical Stage | 180 mm x 155 mm |
Working Distance | 0.6 mm |
Objectives (Infinity Corrected) :
- M Long Working Distance Plan Achromatic 5X (WD 15.5 mm)
- M Long Working Distance Plan Achromatic 10X (WD 8.7mm)
- M Long Working Distance Plan Achromatic 20X (WD 8.8 mm)
- M Long Working Distance Plan Achromatic 50X (WD S L ) (5.1mm)
- M Long Working Distance Plan Achromatic 100 X ( WD SL (0.6mm) ( Optional )
Mechanical Body :
- Co-axial focusing system with large knobs, Pre focusing lever & tension adjustment ring.
- Quadruple nosepiece on ball bearing.
- Mechanical stage is 180mmX155mm.
- The Mechanical stage has low positioned co-axial controls on ball bearing guide ways.
