JBI - Premium Inverted Metallurgical Microscope

Product Details :

JBI- Premium Inverted Microscope:

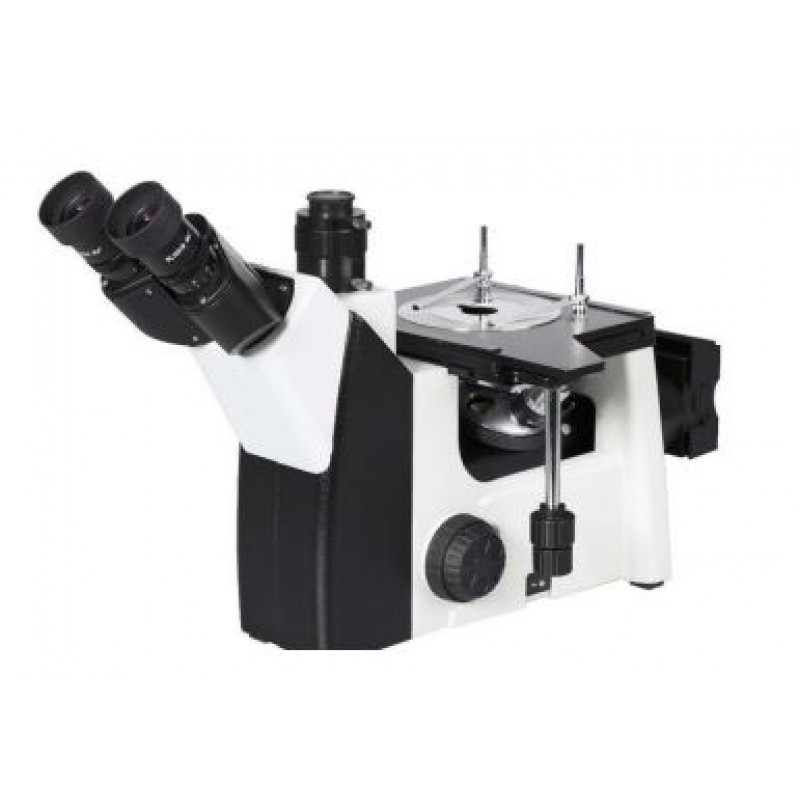

Inverted Metallurgical Microscope - Model : JBI-Premium

Unveil an extensive collection of inverted metallurgical microscopes to fulfill the requirements of a multitude of industries around the world.

Trinocular observation head of these microscopes is equipped with binocular siedntopf inclined at 30 degree and phototube for

photomicrography. These top grade inverted metallurgical microscopes can be availed at reasonable rates with the following features.

TRINOCULAR OBSERVATION HEAD

• Siedentopf observation head inclined at 45°.

• Vertical phototube for micro photography light split (80:20).

• Diopter adjustment ring on ocular tube (±5).

• Interpupillary distance from 54mm to 75mm.

EYEPIECE

Wide field eyepiece 10X (Paired) FOV 18mm

OBJECTIVES (INFINITY CORRECTED)

• M Long Working Distance Plan Achromatic 5X
• M Long Working Distance Plan Achromatic 10X
• M Long Working Distance Plan Achromatic 20X
• M Long Working Distance Plan Achromatic 50X ( S L ) Dry
• M Long Working Distance Plan Achromatic 100X ( S L ) Dry

MECHANICAL BODY

• Co-axial focusing system with large knobs, PRE-FOCUSING LEVER & TENSION ADJUSTMENT RING.
• Quadruple nosepiece on ball bearing.
• Mechanical stage is 180mmX155mm.Moving range: 75mmX40mm.
• The Mechanical stage has low positioned co-axial controls on ball bearing guide ways.

ILLUMINATOR

• The Epi illuminator has 5W LED lamp adjustable brightness.

STANDARD ACCESSORIES

• Blue, Green & Yellow filters. Styrofoam molded pack.
