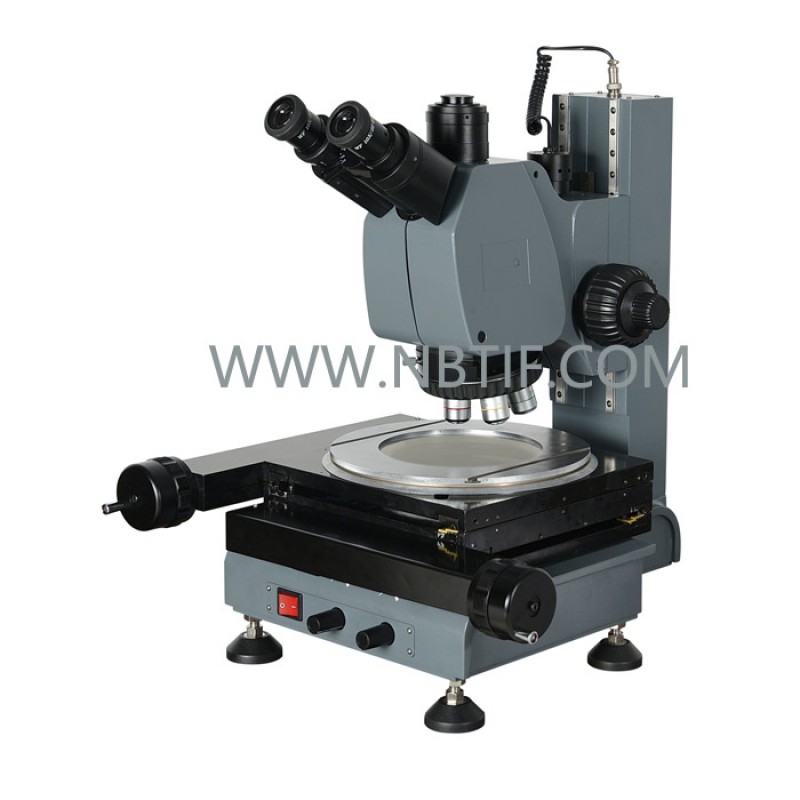

JQX107JB precision measuring microscope is a small size Two-dimensional measuring instrument with digital display,it is compact structure,imaging clearly cand high precision.It adopts reflected and transmitted illumination,observe,analyze and mesure the geometric sence of precision workpiece through observation and digital display system.The microscope is wildly used in measuring room,produce line and department of research institutions,etc.Two-dimensional measuring software is available for your selection,for some geometric parameters which is diffcult to measure directly,such as circle,arc,coaxial,parallel,crossing,relation of shape & position and virtual dimension,etc,it can get the result and output report automaticallu and quickly.
Specification
| Optical system | infinite optical system | |||||||||||||||||||||
| Viewing Head | Positive Compensation free head inclined at 30° interpupilary distance adjustable( 50mm-75mm),0.3X CCD adapter | |||||||||||||||||||||
| Checking Tool | 0.01mm Micrometer | |||||||||||||||||||||
| Optional Accessory | Eyepiece：WF15X/17mm、WF20X/12.5mm infinite Long working distance plan objective 80X/0.70(W.D.3.1mm)\100X/0.80(W.D.3.01mm) Two-dimensional measurement software Professional metallurgical image analysis software 1.3Mega、2.0Mega、3.0Mega、5.0Mega、10.0Megapiexels CMOS digital camera eyepiece Photography attachment and CCD C-mount Micrometer eyepiece CCD Camera,colour1/3 high resolution 700 TV lines Various Industrial Camera | |||||||||||||||||||||
| Light Source | Transmitted illumination Reflecting illumination,Kohler illumination LED 5V/3W,AV85V-230V,brightness adjustable Telecentric Lighting,LED5V/3W,AC85V-230V,brightness adjustable | |||||||||||||||||||||
| Focusing | Coaxial coarse & fine focusing adjustment, fine focusing scale value 0.002mm Z direction lifting range：150mm | |||||||||||||||||||||
| Stage | Stage Size:250mm x 250mm (Glass Stage Size:Ф148mm) Measuring Range:50mm x 50mm Measuring accuracy:≤(3+L/25) um (L represents length to be measured) | |||||||||||||||||||||
| Nosepiece | Six hole Nosepiece with DIC jack | |||||||||||||||||||||
| Objective | infinite Lone Working distance plan objectives 5X/0.15（W.D.14.47mm） 10X/0.25（W.D.16.01mm） 20X/0.40（W.D.10.5mm） 50X/0.55（W.D.5.1mm） | |||||||||||||||||||||
| Eyepiece | Wide field Plan WF10×/22mm WF10×/20mm,crosshair with reticule0.1mm |
Presicion Measuring Microscope JQX-107JB
- Views: 324
-
Ningbo HuaSheng Precision Technology Co Ltd - Vendor Type: Manufacturer, Distributor, Supplier, Exporter
- Product Code: XSPHDS0007
- Availability: In Stock
- ₹0
