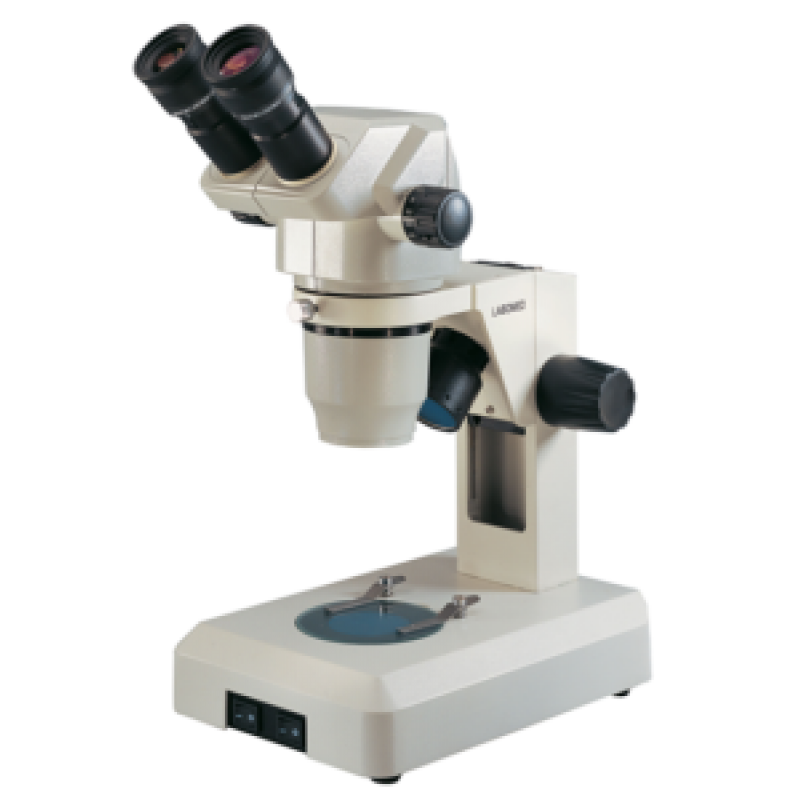

LABOMED CZM 6
Product Details:
Dual light Heavy Duty stable stand with Ball Bearing focusing controls. With 45° Inclined 360° rotatable Binocular Head. IPD adjustable 54-74mm. Zoom ratio 1:6.25 OPTIONAL ACCESSORIES Auxillary Objectives 2x, 1.5x, 1.75x & .5x WF Eyepieces 16x/16mm & 20x/12mm. Ring Light LED or Fluorescent Tubes. POL Stand for extra long working Distance.
Technical Specifications
LABOMED STEREOZOOM MICROSCOPE MODEL CZM 6
- Stand: Dual light stable stand with Ball bearing focusing controls
- Viewing Bodies: Binocular tube, 45° inclined, 360° rotatable, IPD 54-74mm
- Eyepieces: Wide Field eyepiece WF 10x/22mm focusable paired with foldable eye guards.
- Zoom ratio: 1:6.25
- Magnification: 8x-50x
- Illumination: Built-in illumination system 12V-20W Halogen incident light and transmitted 12V-10W halogen transmitted light.
- OFF/ON switch separate for Incident Light & Transmitted Light provided in front of Base.
- Electrical: Input 220v-240v AC, with imported power cord.
- PACKED in Styrofoam box, with operation manual, dust cover, cleaning cloth, power cord.
