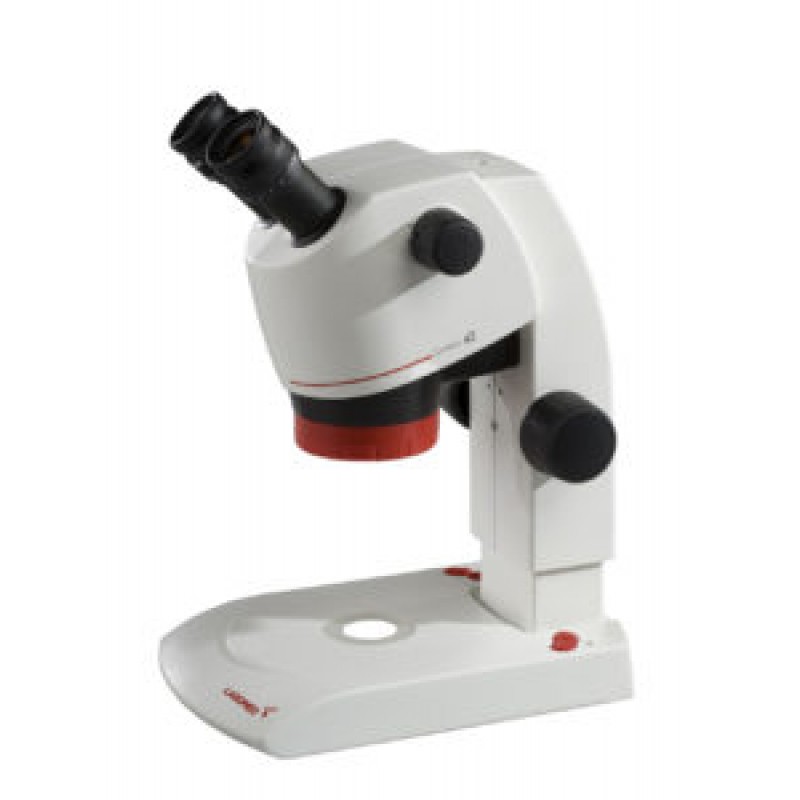

Labomed Luxeo 4Z

Product Details:

The Luxeo 4Z reflects high performance engineering in every detail, demonstrating yet again, an unwavering focus on delivering superb value. With a super bright and white light emitting diode (LED) illumination system, superb optics, and a single-cast durable construction, the Luxeo 4Z addresses the needs of modern biology programs as well as a host of quality control and routine inspection applications.

Luxeo 4Z Advantages:

A +/- 30 degree LED ringlight allows users to reduce surface glare from reflective topographies for true LED Oblique Illumination. Bright LED transmitted illumination is also achieved with a 3-LED glow screen.

superior coatings ensure accurate color reproduction, excellent depth of focus, and superior resolution. A range of focussable eyepieces ensure convenience and interchangeability.

Smooth focus control and a fluid 4.4:1 Greenough zoom system guarantee strain free operation with minimal ware and tare to gears, all of which are made of high-strength steels.

Microscope Specification:

• Optical System - Greenough

• Magnification - 4.4:1 Zoom Ratio

• Eyepieces - Widefield 10x/20mm (interchangeable)

• Diopter Correction - + / - 5 diopters

• Viewing Body - Integrated Binocular, 45º, 52-74mm diopter adjustment

• Working Distance - 100 mm

• Magnification Range - 8x to 35x Continuous

• Object Field Diameter - 6.6 to 28.5 mm

• Eye Guards - Rubber, Retractable

• Illumination Control - Incident / Transmitted ("Oblique" Settings) / Combined illumination control buttons with rheostat dial for light intensity control

• Incident Light -+ / - 30º Oblique illumination and variable intensity control dial

• Incident Light Method -Maximum intensity (10 LEDs), front angled incident light (5 LEDs), rear angled incident light 5 (LEDs)

• Transmitted Light -3-LED super bright glow screen, low heat emission

• LED Service Life -Up to 25,000 hours

• Light Quality -Homogeneous daylight (6500ºK), free of UV and IR emmissions

• Power Supply -Universal 100V - 240V, 50/60Hz integrated power supply with voltage flux stablizer
