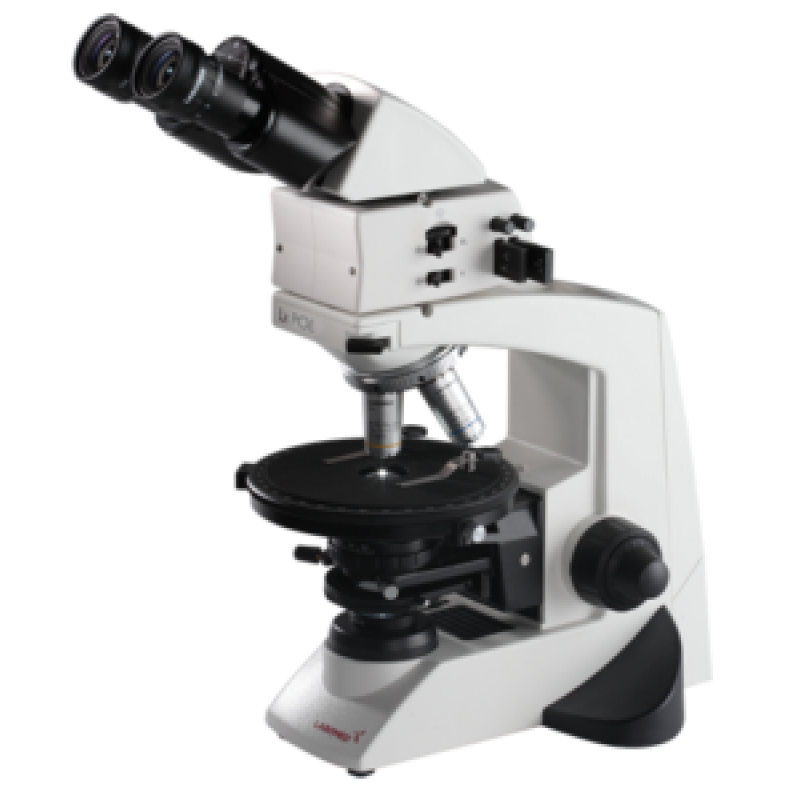

Labomed Lx POL Polarizing Microscope
Product Details:
Greater Insight in the Earth and Material Sciences
The highly streamlined Lx POL polarizing microscope delivers reliability and comfort through precision opto-mechanical engineering. Tight design tolerances with the SF (strain-free) optical series produce near-zero optical impurity interference. Careful attention to the sub-stage polarized extinction disc and individually centerable objectives yield a highly controlled light path with respect to stage orientation, and ultimately a sharp contrast image.
Lx POL Advantages:
- The Lx POL polarizing microscope comes equipped with LABOMED MaxLite™ coated optics, a sputtered hard coating technology that delivers a research grade of anti-reflective and scratch resistant properties. This is most useful in earth and materials sciences applications, where integrity of light transmission and mitigation of internal reflections are critical.
- For precise conoscopic imaging, an integrated analyzer/Bertrand lens module provides individual flip-in/flip-out of the analyzer and Bertrand lens, with a conveniently located focusing dial. Centration of the Bertrand lens is achieved through easy-access front mounted centering screws. A convenient slider slot will accept a range of compensator plates
- A large circular stage with two locking brakes is provided, delivering a smooth 360 degrees of rotation. An optional 100x objective further complements the SF series of strain-free optics, ensuring no optical impurities interfere with polarized light. A fixed verticality crosshair is a standard feature, maintaining its orientation as IPD is adjusted.
- Two compensator plate slots and two centering tool slots are located onboard the analyzer/Bertrand lens module to prevent unwanted loss of accessories. The microscope comes equipped with λ, 1/4 λ, and Quartz-Wedgeplates.
Polarizing Microscope
Stand | Single mold sturdy stand with anti rust materials. Extended base for better stability |
Viewing Bodies | Siedentopf Binocular or Trinocular head; 30° inclined; 360° rotatable; IPD 52-75 mm |
Eyepiece | WF 10X/18 mm with eye guards, diopter adjustment ± 5 mm and diopter lock; |
Nosepiece | Reverse angle quadruple nosepiece (ball bearing type) with click stops, featuring independently centerable objectives |
Analyzer | Adjustable analyzer with centration screws. Focusable Bertand lens. Slider slots and spare slider holders. Comes equipped with Lamda, 1/4 Lamda, and Quartz Wedge plates. |
Polarizer | Rotating polarizer with orientation markers at every 90° |
Objectives | SF series strain free infinity corrected DIN Plan Achromatic objectives: 4x(WD 30.0mm), 10x(WD 7.00mm), 40x(WD 0.65 mm); Optional 100x(WD0.23mm)spring loaded, oil objective |
Circular stage | 360° rotatable stage, 160mm with one degree increments and spring clips |
Condenser | 0.9 NA centerable strain free conderser |
Focusing | Feather touch attrition-free coaxial coarse and fine focus adjustment with auto tension adjust meant for longer life and responsive movement. Weighted fine focus. |
Illumination | Halogen 6v-30W with one installed bulb, Koehler field diaphragm. LED illumination optional. |
Electrical | Universal input 100V - 240V AC, 50/60Hz. Built-in voltage sensing power supply. |
