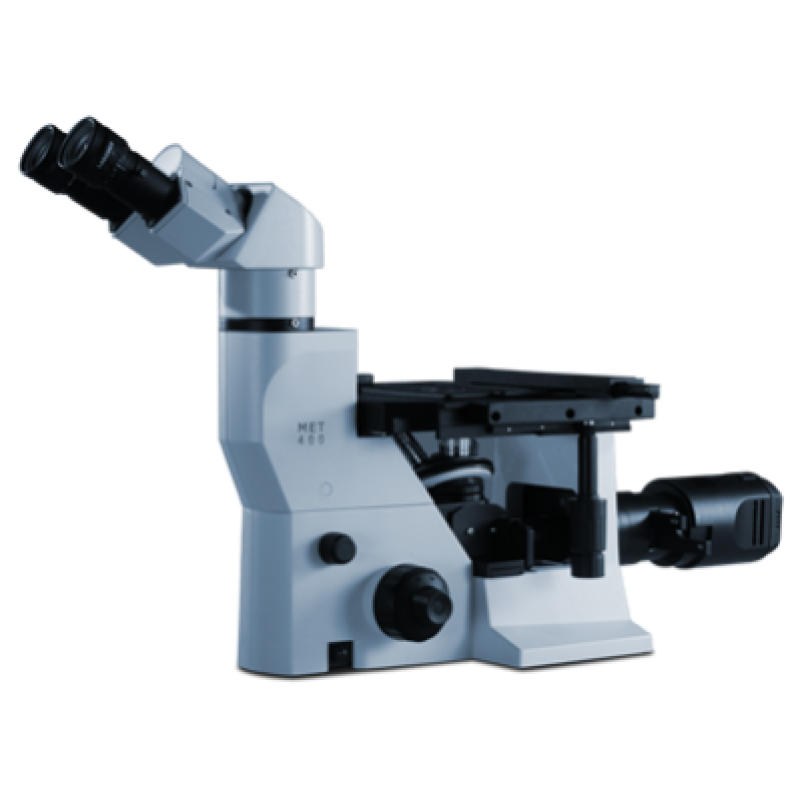

Labomed MET 400
Product Details:
A High-Precision Metallurgical Tool for Demanding Environments
The LABOMED MET 400 is a workhorse tabletop metallurgical microscope that takes on a compact and highly durable form, making it the ideal candidate for daily inspection needs. Whether inspecting heat treated and stress tested metals, glass, plastics, chemicals, contaminants, or thin films, the MET 400 delivers pristine resolution and contrast while ensuring comfort over long periods of use.
MET 400 Advantages:
- The ML Infinity Corrected Plan optical series promises image fidelity. Proprietary MaxLite™ coatings deliver superior anti-reflective and scratch resistant properties. Long working distance and efficient design provide for aberration-free imaging. A dry 100x objective is optional.
- A slide-in polarizing kit with built-in polarizer/analyzer can be added as an option, providing 360 degrees of light extinction.
- An ultra bright 6V-30W light source with a high color rendition index faithfully illuminates specimens, particularly those used in color sensitive applications such as photomicrography.
Inverted Metallurgical Microscopy
Stand
Ergonomic sturdy stand made of anti-rust material
Viewing Body
Siedentopf Binocular or Trinocular head; 30° inclined, fixed; IPD 52- 75mm.
Eyepiece
WF 10X/18 mm with eye guards, diopter adjustment ± 5 mm and diopter lock;
optional: WF 12.5X/18 mm
Focusable Wide Field eyepieces 10x/22mm, with foldable eye guard, antifungal.Nosepiece
Reverse angle quadruple nosepiece with click stops and rubber grip.
Objectives
ML series infinity corrected, DIN Plan Achromatic objectives 5x, 10x, 20x and 50x; antifungal, MaxLite (TM) coated; Optional 100x Dry objective.
Focusing
Coaxial coarse and fine focusing system with tension adjustment. Focus graduation is 2um per division.
Illumination
Koehler episcopic illumination system with diffuser; Halogen 6V-30W with intensity control; 100V - 240V universal power supply.
Stage
Fixed stage with specimen holder - 3 types (38mm, 55mm, 65mm). Optional mechanical stage.
Electronics Optional
Universal power supply (110V-240V) with built-in voltage stabilizer 100x Dry objective; Mechanical stage; Adapters for video and digital cameras
