Labomed Sigma
Product Details:

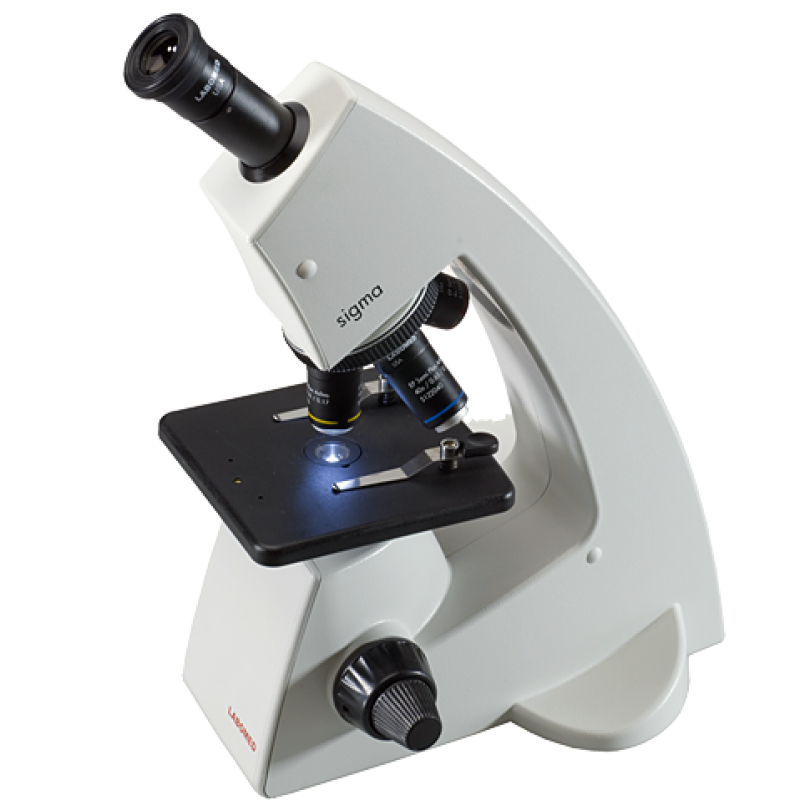

MONOCULAR MICROSCOPE MODEL SIGMA
- With top of the line features of a Student Microscope.
- REVERSE QUADRUPLE TURRET (Ball bearing type) with rubber grip.
- High Grade Achromatic Objectives & WF Eyepiece Par-centered & Parfocal on CNC Machines.
- With 1W white LED on Heat Sink
- Life more than 1,00,000 Hours & Lithium Ion Battery Back-up for use when Power Supply failure.
- All metallic moving parts on Ball Bearing Guides to give highly sensitive & smooth motion.
Technical Specifications
LABOMED MONOCULAR MICROSCOPE MODEL SIGMA
- Stand: Sturdy metal structure with poly-carbonate Covers Counterbalance hand-rests for better stability.
- Viewing Body: Integrated Monocular tube, 45° inclined.
- Eyepieces: wide field eyepiece 10x/18mm, with foldable eye guard, anti-fungus coating.
- Nosepiece: Reverse quadruple turret (Ball bearing type) with rubber grip. PAR-CENTERED & PARFOCAL
- Objectives: DIN Semi-Plan Achromatic objectives 4x, 10x, 40x (spring loaded), 100x Oil (spring loaded) anti-fungus coating.
- Stage: Rectangular size 120mm x 125mm, Mechanical stage having axial drives for X & Y movement of slide & graduated scal\es.
- Focusing: Co-axial coarse and fine focusing with brass gear movements for smooth operation.
- Illumination: FAD2124002: LED illumination, variable intensity control with illuminated ON/OFF switch, rechargeable battery. Up to 100,000 hours of LED life.
- Electrical: Input 200v-240v AC through external power adapter for battery charging. Lithium - Ion rechargeable battery built-in. Easy to replace Battery.
- PACKED in styrofoam box, with operation manual, dust cover, cleaning cloth, power adapt
