Labomed TCM 400

Product Details:

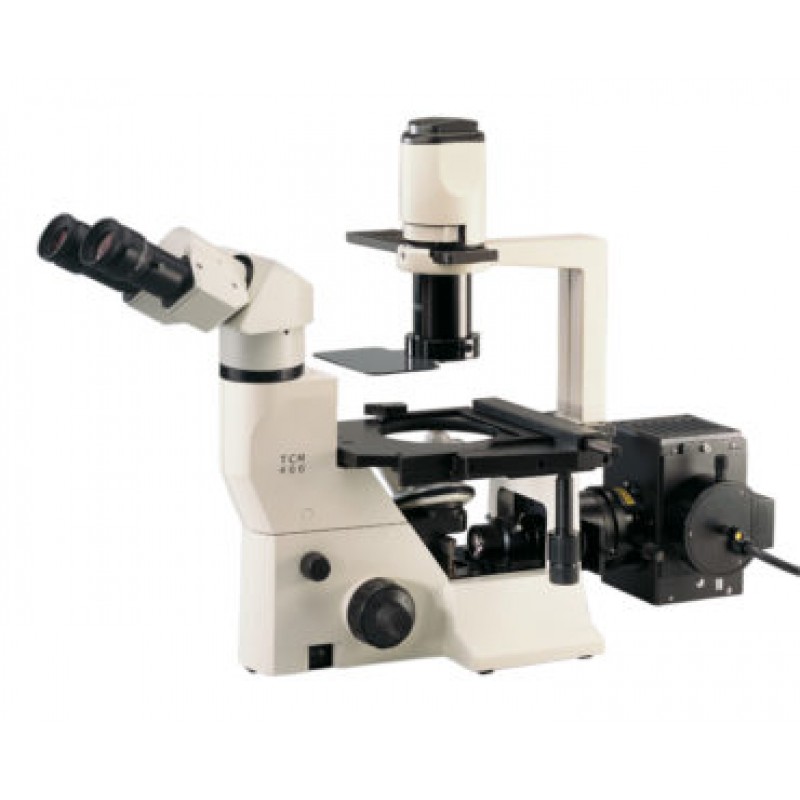

INVERTED TISSUE CULTURE MICROSCOPE MODEL TCM 400

• Ergonomically designed sturdy stand of anti rust material.


• With Sidentopf Binocular OR Trinocular 30° Inclined 360° rotatable IPD adjustable 52-75mm.
• Objectives Infinity corrected, true color, long working distance DIN Infinity Corrected Phase Plan Achromatic Objectives 4x, 10x and 20x, Anti Fungus Coating.
• Transmitted illumination system6V-30W Halogen with intensity control


  Optional:

• Fluorescence Attachment, with B- Excitation & G-Excitation & Power supply Box.
• Mechanical Stage attachable on Fixed stage
• 40x Phase True Color, LWD Objective.

Microscope

Stand	Ergonomically designed sturdy stand (aluminum die-cast)
Viewing Body	Binocular, Trinocular 30° and Ergonomic Tiltable Binocular tube (0°-25°), IPD 52-75mm
Eyepiece	Widefield 10x/22mm eyepieces with rubber eyeguards, antifungal coatings
Nosepiece	Quadruple reverse angle turret (Ball bearing type) with rubber grip
Objectives	LW series Long working distance DIN Phase Plan Achromatic objectives 4x, 10x and 20x, antifungal coatings
Mechanical Stage	Fixed plain stage 160mm x 240mm
Condenser	Long working distance Condenser NA 0.30, suitable for Phase contrast/BF with Phase contrast slider and telescope, Green and Blue filters. Specimen holders include 35mm Petri dish holder and two dish/sample holders (only with optional mechanical stage)
Focusing	Coaxial coarse and fine focusing mechanism. Fine focus graduation 2.0μm
Illumination	Transmitted Illumination system 6v30w Halogen with intensity control. Up to 500 hours of Halogen lamp life.
Electronics	Universal power supply (110V-240V) with built-in voltage stabilizer
