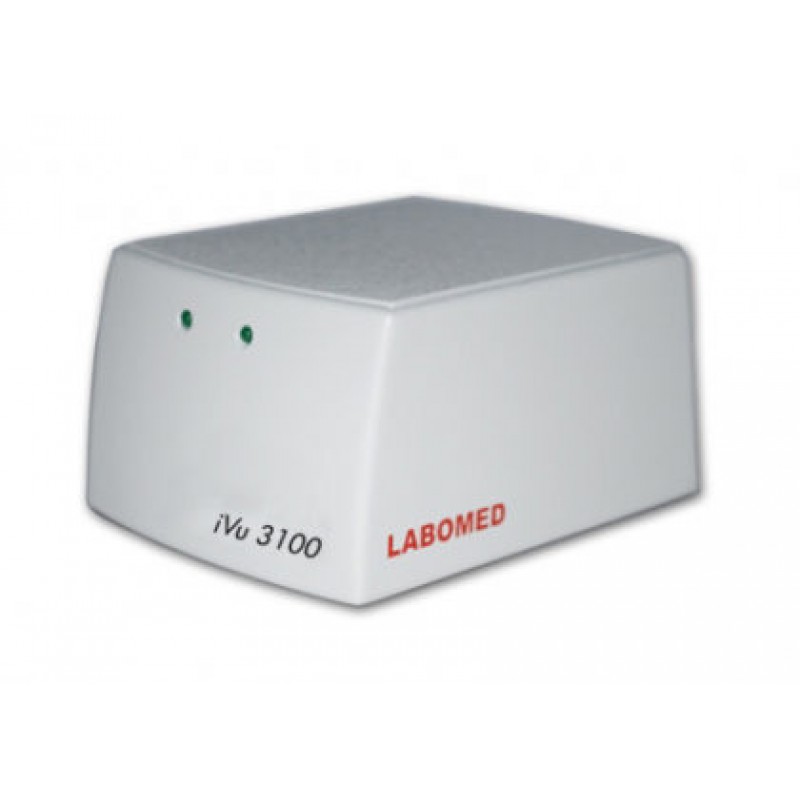

Labomed iVu 3100
Product Details:
iVu3100 DIGITAL CAMERA MODULE DIGITAL CAMERA MODULE 3.0 MEGA PIXEL
- The iVu 3100 is a 3 Megapixel digital solution that boasts one of the fastest frame rates in its class, a high definition image, and unparalleled accuracy in color reproduction. Total vertical integration of camera development at Labomed means better image quality, easy to navigate software, and better end-to-end software and driver support.
- 3 Megapixel image resolution with 30 frames per second (fps), vivid color reproduction and high-fidelity in image contrast. Digital interfacing is accomplished through USB 2.0, making this system easy to integrate
- PixelPro Image Capture Software makes still and video capturing simple. A modern and easy to navigate user interface allows both teachers and students to quickly identify critical control functions, and to archive and annotate images with complete ease.
Camera
Sensor | 1/2" 3.0 MP Color CMOS |
Active area | 4.52mm x 3.40mm |
Sensor resolution | 2048 x 1536 pixels |
Pixel Size | 2.2µm x 2.2µm |
A/D conversion | 12 Bit RGB |
Pixel clock | 48 MHz |
Dynamic range | 56 dB |
Max. exposure | 2 seconds (Automatic Exp, WB, BL) |
Frame rate (image size) | 30 fps (640 x 480) |
Image resolution (Standard Binning) | 2048 x 1536 1024 x 768 640 x 480 |
Digital interface | USB 2.0 |
Optical connection | C- Mount (0.63x) |
Voltage supply | 5VDC (via USB 2.0 connector) |
Power consumption | approx. 1.9W |
Ambient conditions | Temperature: -30˚C… +70˚C Humidity: 5%... 80%, not condensing |
Dimensions (LxWxH) | 145mm x 93mm x 123mm |
Weight | 600g |
Capture software | PixelPro |
Computer Requirments | PC: Microsoft Windows® XP/ Vista/ 7 OS, 3 Ghz CPU, 2GB RAM (if 1GB, then 64MB graphics card recommended), USB 2.0 |
