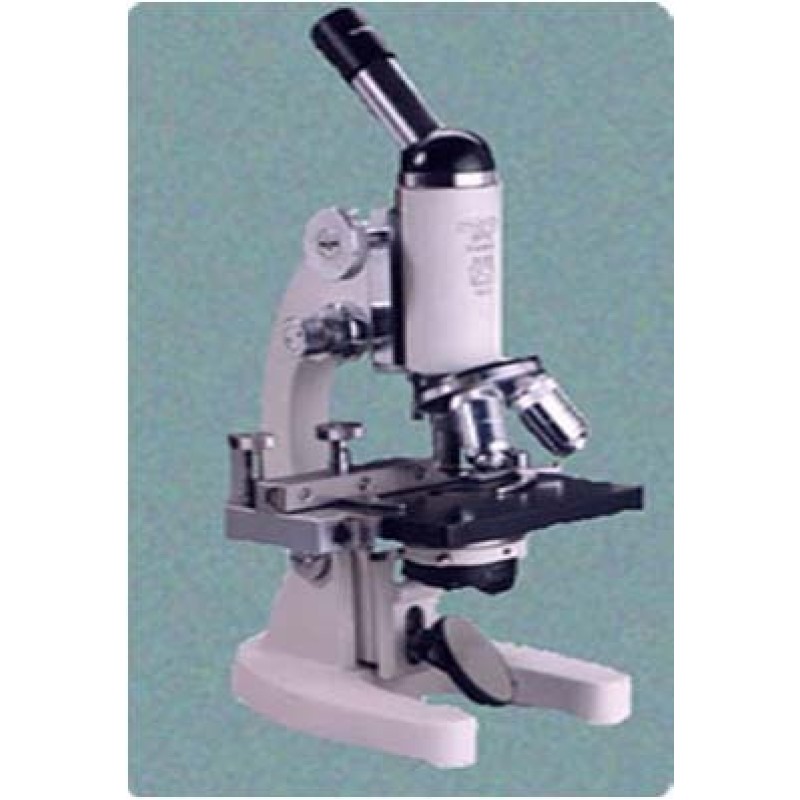

Laboratory And Medical Microscope (Incline Head)
Click Image for Gallery
Laboratory And Medical Microscope (Incline Head)

Laboratory And Medical Microscope (Incline Head)

Product Details :

MODEL » KG-5(I)

This Compact Reliable Microscope incorporates some of the most effective of Micron Optical Techniques. The Accurate and practical design of this instrument has resulted in a greately enlarged extension of its applications in llaboratories, universities and hospitals.


STANDARD FEATURES
1.Mechanical tube length of 160 ± 1mm
2.Fixed square stage 120mm x 120mm with detachable or built in graduated mechanical stage
3.Dust proff triple revolving nose piece with positive click stops
4.Focusing by coarse and fine adjustment without scale
5.Substage Abbe type N.A. 1.25 condenser with iris diaphragm swing out filter holder focusable by Rack Pinon
6.Illumination by plano concave mirror in fork mount
7.Steple Grey, chemical resistant, back-on finish


OPTICAL COMBINATION
EYE PIECESOBJECTIVESMAGNIFICATION
5X 10X 15X
[Huygenian] any Two		X10, X40 S/L 100 Oil
[Achromatic]		X100 - X1500


OPTIONAL ACCESSORIES
1.Illumination by sub stage pin type lamp working on 220 volts - 15 watt. Model : ML-1
2.Objective......:. .X4, X20, X45 S/L, X60 S/L
3.Eye Pieces...:...W.F. 10X
