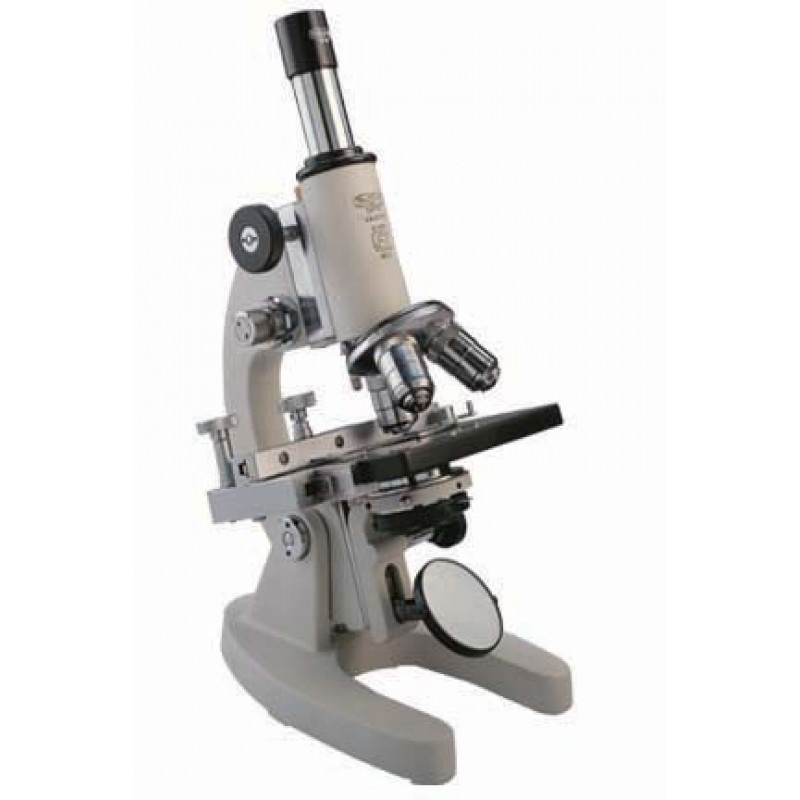

Laboratory And Medical Microscope
Product Details :
MODEL » KG-5
This Compact Reliable Microscope incorporates some of the most effective of Micron Optical Techniques.
The Accurate and practical design of this instrument has resulted in a greately enlarged extension of its applications in laboratories, universities and hospitals.
| STANDARD FEATURES | |
| 1. | Mechanical tube length of 160 ± 1mm |
| 2. | Fixed square stage 120mm x 120mm with detachable or built in graduated mechanical stage |
| 3. | Dust proff triple revolving nose piece with positive click stops |
| 4. | Focusing by coarse and fine adjustment without scale |
| 5. | Substage Abbe type N.A. 1.25 condenser with iris diaphragm swing out filter holder focusable by Rack Pinon |
| 6. | Illumination by plano concave mirror in fork mount |
| 7. | Steple Grey, chemical resistant, back-on finish |
| OPTICAL COMBINATION |
| EYE PIECES | OBJECTIVES | MAGNIFICATION |
| 5X 10X 15X [Huygenian] any Two | X10, X40 S/L 100 Oil [Achromatic] | X100 - X1500 |
| OPTIONAL ACCESSORIES | |
| 1. | Illumination by sub stage pin type lamp working on 220 volts - 15 watt. Model : ML-1 |
| 2. | Objective......:. .X4, X20, X45 S/L, X60 S/L |
| 3. | Eye Pieces...:...W.F. 10X |
| 4. | Interchangable 45º inclined Monocular Tube |
Additional Information:
- Item Code: KG-5
Laboratory And Medical Microscope
- Views: 34
-
Science International - Product Code: KG-5
- Availability: In Stock
- ₹0
