MEDSTAR Senior

Product Details:

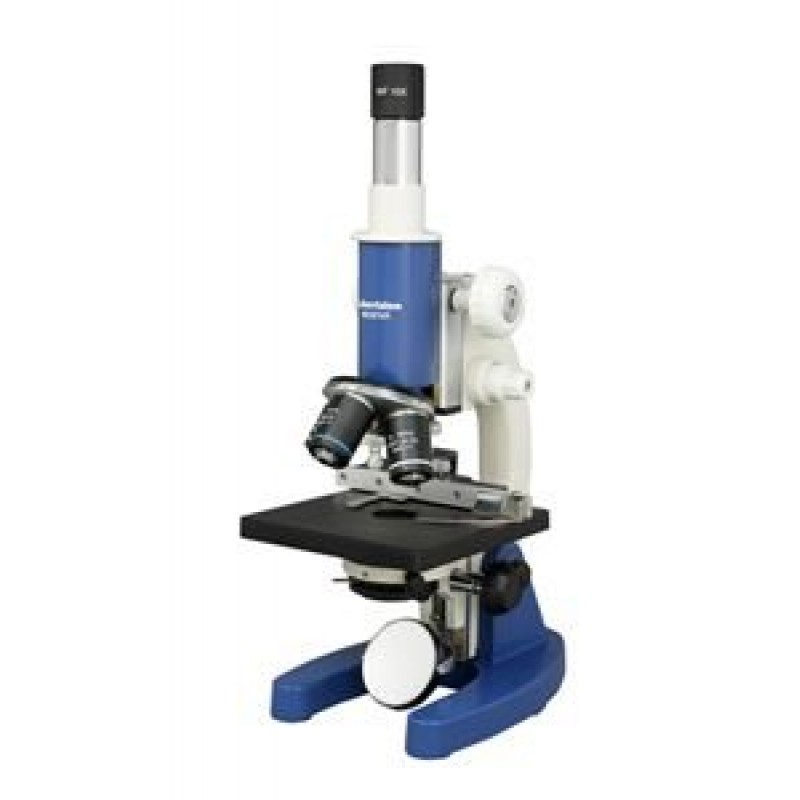

MEDSTAR SeniorEDUCATIONAL MICROSCOPE

LABOVISION MEDSTAR delivers superb value to students and hobbyists. With a light weight and cordless operation, MEDSTAR can be taken wherever it is required. An educational tool promising the very best in styling, optics, durability, and value, MEDSTAR's beautiful design will accent any classroom environment.

SPECIFICATION

STAND	Stable & Robust, traditional Horse Shoe base
EYEPIECES	Two Huygenian Eyepeice : 6x & 10x or 15x
BODY	Inclinable through 90°, Tube Length 160mm
FOCUSING	Separate coarse and fine focusing knobs. Coarse movement by Rack & Pinion and fine movement by Screw Lever Mechanism.
NOSEPIECE	Quadruple Revolving Nosepiece is provided with positive click stop for proper centering
STAGE	Fixed Stage size 125 x 125 mm with detachable mechanical stage for x and y movement of slide up to 25 x 75 mm with graduated scales and verniers
ILLUMINATION	50 mm diameter planoconcave mirror mounted on gimbal mount
OBJECTIVES	Three Achromatic objectives: 10x, 40x(SL) & 100x(SL) Oil Immersion
CONDENSER	Sub Stage Abbe condenser with N.A. 1.25. Iris diaphragm and filter holder mounted
ACCESSORIES	Vinyl Cover, Duster, Filter, Instruction Manual
PACKING	In Full Mould Thermocole Box
ADDITIONAL ACCESSORIES	External Illuminator, Wide Field WF 10x Eyepiece, Pointer Eyepiece, Wooden Box, Camera Lucida, LED Unit with rechargeable battery
