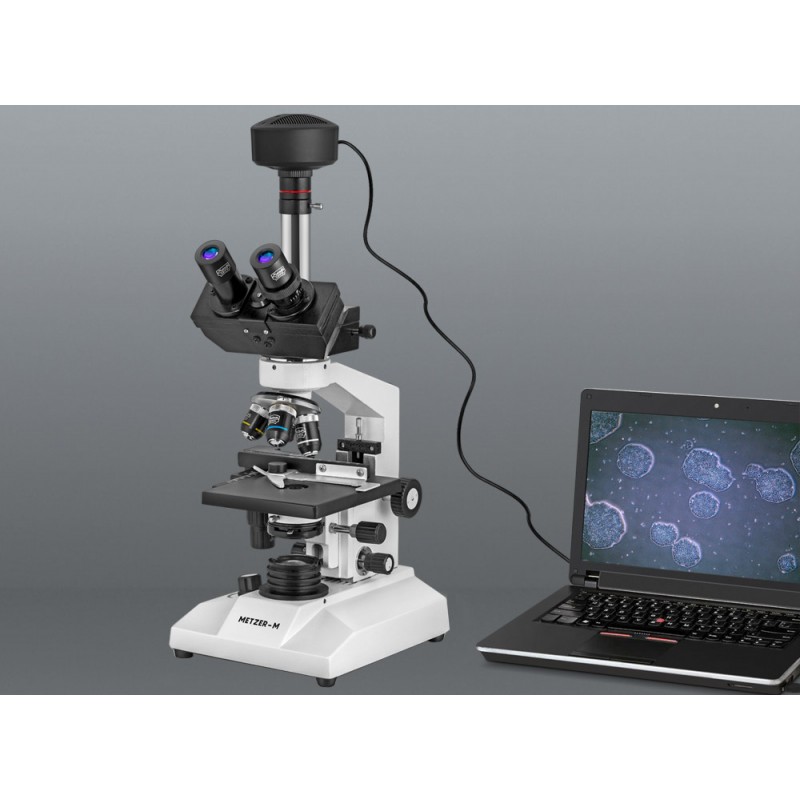

METZER – M TRINOCULAR RESEARCH MICROSCOPE MODEL METZ – 779A

Product Details :

• Magnification - 50x – 1000x.
• Observation - Trinocular 45˚, 360˚ rotatable, with interpupillary and diopter adjustment.
• Stand - A rigid & heavy stand.
• Focusing - Coarse and fine focusing by conveniently placed separate knobs 1 div. 0.002 mm.
• Stage - Horizontal Mechanical stage 120 x 140 mm. with fine vernier graduation. Designed with convenient co–axial adjustment for slide manipulation through 50 x 70 mm.
• Illumination - The illuminator incorporated 3W LED lamp and has adjustable brightness.
• Condenser - Sub stage Abbe filter holder N.A. 1.25 condenser with Iris diaphragm and swing out filter holder focusable by rack & pinion.
• Nose Piece - Quadruple revolving nose piece with positive click stops.
• Eye Pieces - W.F. 10 x Anti Fungus Coated.( Paired) F.O.V.18 MM.
• Digital Usb Camera 5.0 Megapixel Color CMOS sensor, Size 1/2", Pixel size 2.2x2.2 micron Resolution 2592x1944, PC interface, 30 bit color depth, exposure time 1 Microsecond to 2 seconds. High Image Transmission convenient to use any standard Microscope. Digital Camera can change image into Digital signal & send it to your P.C.
