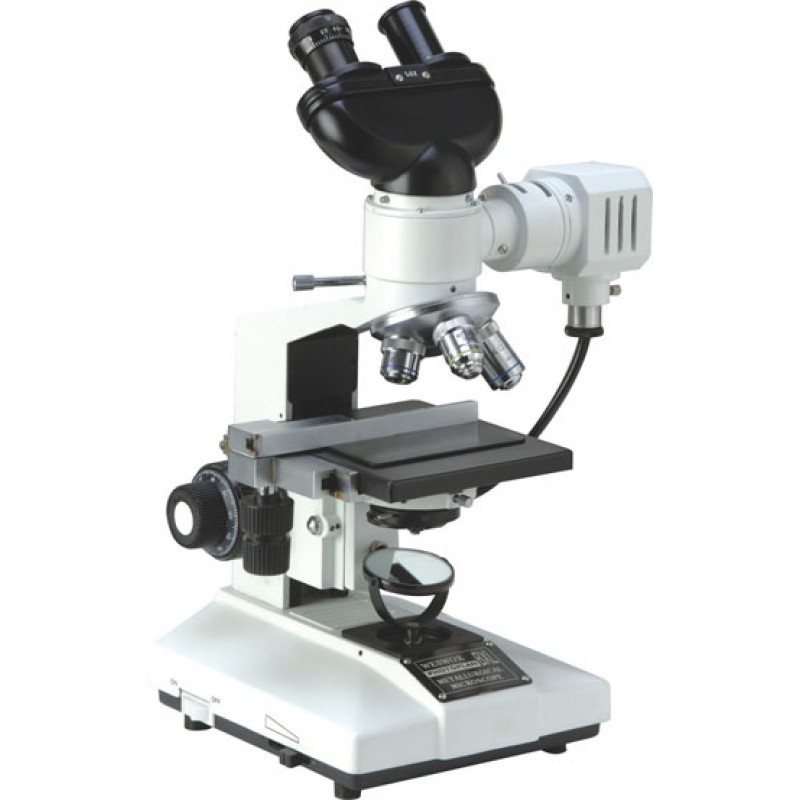

Metallurgical Microscope
Improves your workflow and allows you to concentrate entirely on the task at hand.
Higher Resolution KEOWA Optics.
Vrtical illuminator provides exellent bright field.
Low-positioned coaxial focusing knobs for smoothness.
Specifications:
Warranty Information 2 Years parts.
3 Years KEOWA optics
1 year Electronics
Stand | Rigid & Heavy single mold aluminum die-cast stand. | |||
Observation Head | Monocular Observation Head inclined at 45o rotatable through 360o with adjustable interpupillary distance and diopeterical focussing arrangement. | |||
Eyepiece | KEOWA H10x & H15x anti-fungal, lockable. | |||
Nosepiece | Quadruple revolving nosepiece with positive click stops and rubber grip. | |||
Objectives | KEOWA M10x, M20x & M40x (SL) anti-fungal. | |||
Stage | Graduated rectangular mechanical stage of size 120X140mm having low positioned co-axial controls. | |||
Focusing | Co-axial coarse and fine focussing on ball drive system for smooth operation. | |||
Condenser | Focussable abbe two lens type NA 1.25 condenser with iris diaphragm and swing out filter holder with blue filter. | |||
Illumination | Bright field vertical illuminator with halogen lamp 6V-20W works on variable transformer with adjustable field and aperture Iris diaphragm with slots for dropping coloured filters. Provides excellent bright field in incident illumination of opaque or semi-opaque specimens. | |||
Packaging contents | Blue, green filters & dust cover. STYROFOAM molded box. |
