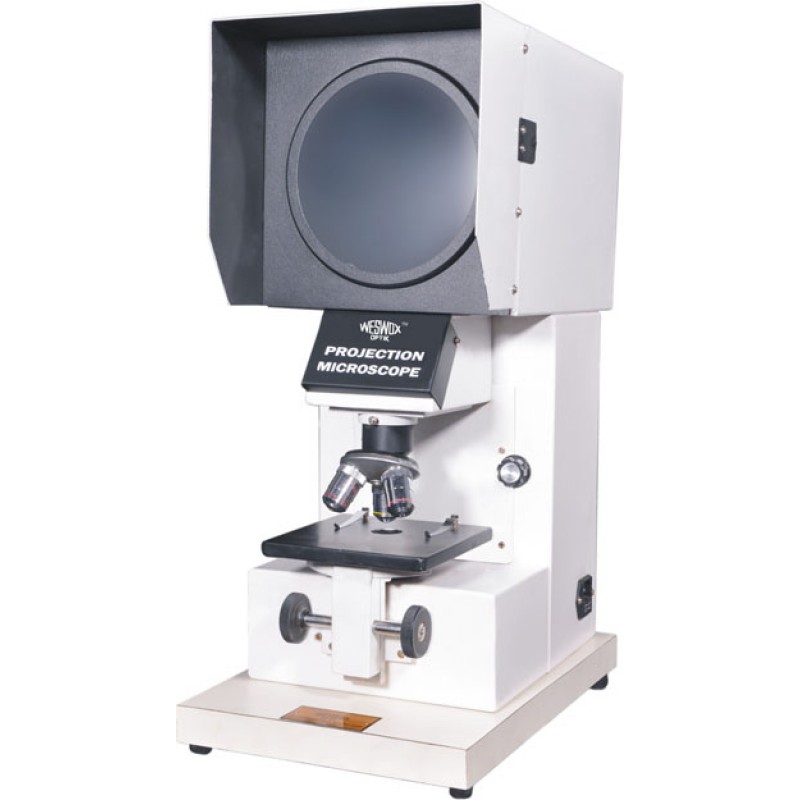

Projection Microscope
Versatile instrument of universal application, designed for all stages of demonstration, measurements, checking, counting & comparison in Science Labs, Textile Production, and Medical & Agricultural Fields.
Specifications:
Warranty Information 2 Years parts.
1 year Electronics
| Observation Screen | 160mm dia. ground glass screen, easily removable to enable projection of specimens on the wall screen. | |||||
| Nosepiece | Triple/Quadruple nosepiece with positive click stop. | |||||
| Objectives | 10X, 20X, 40X (SL). | |||||
| Stage | Fitted with two phosphorus chrome plated stage clips to hold specimen slides. | |||||
| Focusing | Focusing is done by vertical movement of stage, coarse adjustment by rack & pinion. | |||||
| Condenser | Focusable condenser lens with iris diaphragm, filter carrier, is mounted on a pole on which it can be positioned up or down to accommodate any type of culture vessel in a vertical range of 140mm working distance of condenser lens is 23mm. | |||||
| Illumination | Brilliant illumination based on Koehler system is provided by a high intensity 6V-20W Halogen Lamp Illuminator, powered from a base built in variable intensity controlled transformer. | |||||
| Packaging contents | The concomitant Accessories - a spare bulb, fuse, vinyl cover & power cord are housed in a drawer on the side wall of the microscope Complete in a cardboard box. |
Projection Microscopes MP-380
- Views: 284
-
The Western Electric and Scientific Works - Vendor Type: Manufacturer, Exporter
- Product Code: WESWOX0035
- Availability: In Stock
- ₹0
