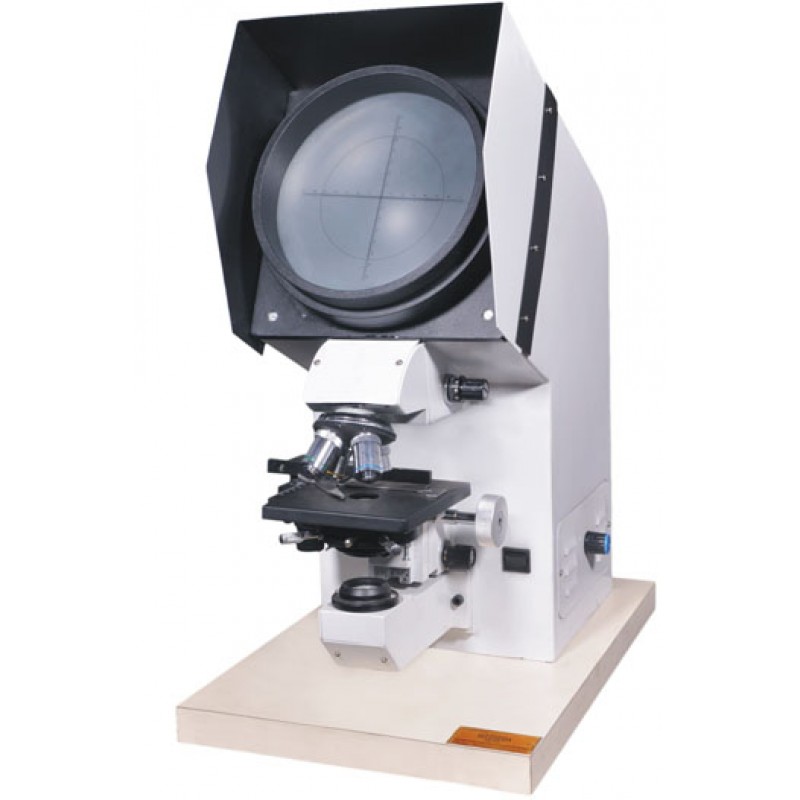

Projection Microscope
Incorporates best quality optical components & Fresnel lens behind the screen for brilliant projection through the screen area.
Large graduated screen made from finest glass of size 195 dia. 360 rotate able on ball bearing and has a fresnal lens behind it for brilliant & uniform intensity of projection through out the screen area.
Higher resolution KEOWA optics for true colour & contrast.
Specifications:
Warranty Information 2 Years parts.
1 year Electronics
| Magnification | Total magnification from 125x till 1000x. | |||||
| Observation Screen | (As per Metronex Warszaw "POLLAND" Model MP-3) with 195mm dia, graduated screen 3600 rotatable, built-in Fresnel Lens and compensating eyepiece. | |||||
| Nosepiece | Triple/Quadruple nosepiece revolves on ball bearing with rubber grip and positive click stop. | |||||
| Objectives | KEOWA Achromatic objectives 4X, 10X, 20X, 40X (SL). | |||||
| Stage | Coaxial built-in Mechanical stage for comfortable & convenient manipulation of specimen slides. | |||||
| Focusing | Focusing is done by vertical movement of stage, coarse adjustment by rack & pinion and fine movement by screw lever mechanism, driven by graduated knob. | |||||
| Condenser | Bright fields, knob condenser NA 1.25 with iris Diaphragm and swing out filter holder is provided, which can be operated through a rack pinion knob. | |||||
| Illumination | Having projection bulb 12V-100W with intensity control unit workable on 220 volts AC mains. | |||||
| Packaging contents | The concomitant Accessories - a spare bulb, fuse, vinyl cover & power cord are housed in a drawer on the side wall of the microscope. Complete in a cardboard box. |
Projection Microscopes MP-385
