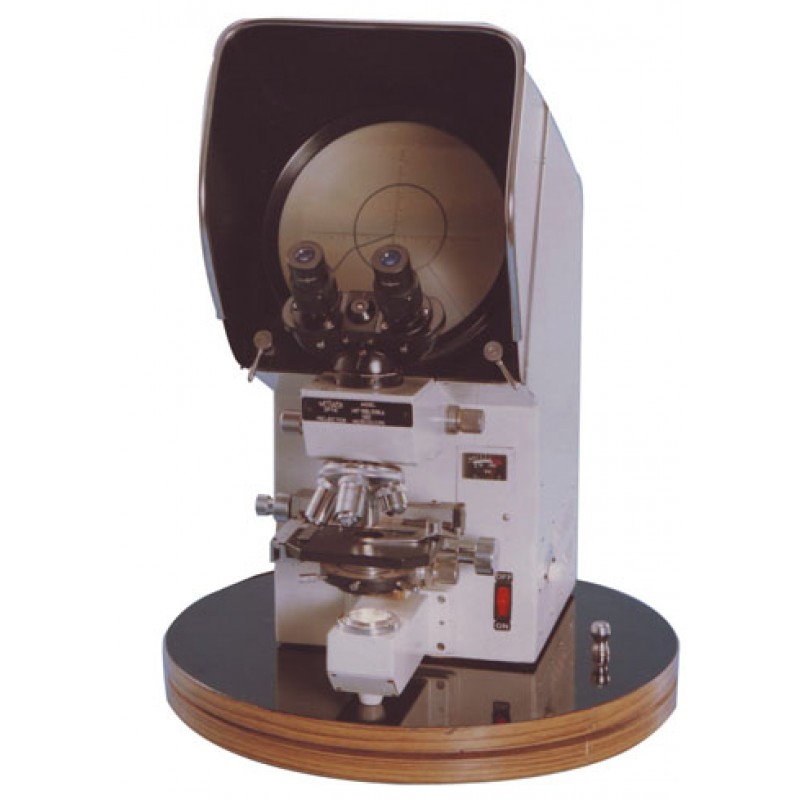

Projection Microscope
A latest improved model of projection Microscope for most accurate measurement of micro structures also incorporating pointer system and solid variable light control with intensity meter.
The whole microscope rests on ball bearings mounted platform for convenient movement during demonstration & group discussions. Incorporates best quality optical components and Fresnel lens behind the screen for brilliant projection throughout the screen area.
Specifications:
Warranty Information 2 Years parts.
1 year Electronics
3 Years KEOWA optics
| Magnification | Total magnification from 125x till 1000x. | |||||
| Observation Screen | Having 195mm dia graduated screen rotatable through 360o with pointer and built in compensating eyepiece to provide magnification range from 100x to 1500x. | |||||
| Nosepiece | Triple/Quadruple nosepiece revolves on ball bearing with rubber grip and positive click stop. | |||||
| Objectives | KEOWA Achromatic objectives 4x, 10x, 20x, 40x, or 60x (SL) (Any 4 Nos.) | |||||
| Stage | Coaxial built-in Mechanical stage for comfortable & convenient manipulation of specimen slides. | |||||
| Focusing | Focusing is done by vertical movement of stage, coarse adjustment by rack & pinion and fine movement by screw lever mechanism, driven by graduated knob | |||||
| Condenser | Bright fields, knob condenser NA 1.25 with iris Diaphragm and swing out filter holder is provided, which can be operated through a rack pinion knob | |||||
| Illumination | Equipped with Super Bright Halogen Lamp 12V-100W and built-in-solid state light control arrangement. | |||||
| Packaging contents | The concomitant Accessories - a spare bulb, fuse, vinyl cover & power cord are housed in a drawer on the side wall of the microscope. Complete in a cardboard box |
| Accessories(Optional) | Binocular Head Arrangement with HKW 10x eyepieces (paired). | ||
Projection Microscopes MP-386
