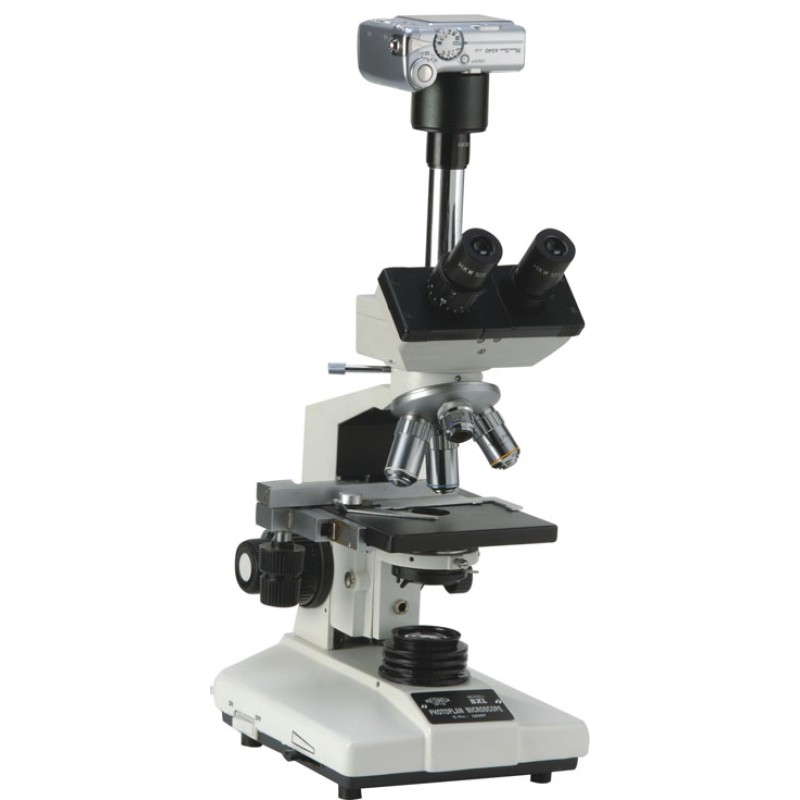

Advance Research Microscope  MP-3tr

Advance Research Trinocular Microscope

Most professional microscope for advanced analytical and research work.

Stable and sturdy base with built-in circuitary for illuminatore.High intensity HALOGEN LAMP for KOHLERS ILLUMINATION.PLAN ACHROMATIC Objectives for truecolor and contrast.(most suitable for photomicrography)

Specifications:

Warranty Information 2 Years parts.

                                                3 years KEOWA optics.

                                                1 year Electronics

StandSingle mold sturdy stand with anti rust materials. Extended base for better stability
Observation Head

TRINOCULAR head inclined at 45o and rotatable in 360o lockable at any angle. Both eyepiece tubes focusable to match objectives tube length. Interpupillary distance adjustments provided.




Eyepiece
Lockable, anti-fungal KEOWA Extra Wide Field HKW 10x/FOV 18mm (PAIRED) A.R. coated eyepiece with high eyepoint and foldable eyeguards. H6x (PAIRED) eyepiece extra.

Nosepiece
Quadruple/Quintuple ball bearing nosepiece with POSITIVE click stop & rubber grip.
Objectives

KEOWA DIN size anti-fungal RMS Plan Achromatic objectives 4x/NA 0.10, 10x/NA 0.25, 40x/NA 0.65(SL) and 100x/NA 1.25(SL) Oil imm.







StageDouble Plated Rectangular stage( Ball Bearing Type) of size 120x140mm having low positioned co-axial controls. Both X & Y axis having graduated scale & verniers reading to 0.1mm.
Focusing
Co-axial fine & coarse focusing control with ball bearing guideways based on four stage gear reduction system, free from any back lash & large knobs provide a soft & sophisticated touch to the microscope.
CondenserFocusable Abbe two lens type condenser NA 1.25 fitted with iris diaphragm and swing out filter holder with blue filter moving up and down through rack and pinion mechanism.


Illumination
Built-in Base illumination with 6V-20W halogen lamp & intensity controlled power supply.
Packaging contents

Packed in shockproof Styrofoam molded box or in a plywood cabinet having provision for placing eyepieces, objective

Nylon Dust cover.

Detachable power cord and 3-pin plug.


Tension Control Ring
Enable you to adjust tension on coarse focusing knobs.
Accessories (optional)
Dark field and phase contrast kits.
