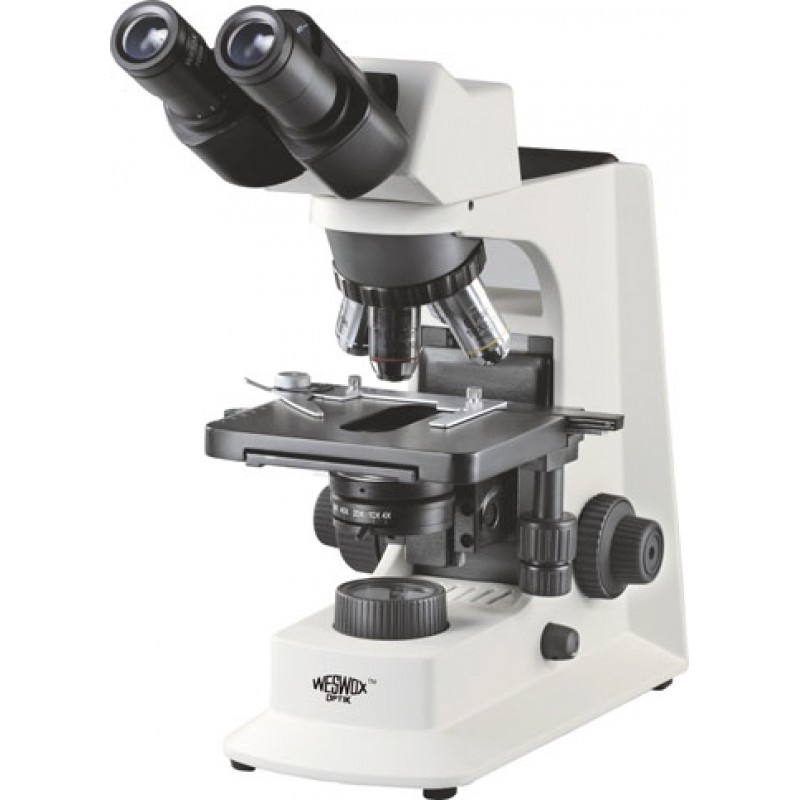

Research MIcroscope
Incorporates all the features of an international microscopes for professionals.
Ideally recommended for routine as well as research work.
Binocular fitted with large size prisms for superbclarity & contrast.
KEOWA optics with high eye point offers maximum resolution and high colour fidelity.Lead free optics and pains make BXL a truly ecofriendlysolution.
Large knobs provide a soft and sophisticated touch to mkicroscope.
Specifications:
Warranty Information 2 Years parts.
1 year Electronics
| Stand | Single mold sturdy stand with anti rust materials. Extended base for better stability | |||
| Observation Head | Siedentopf Trinocular 30o inclined, 360 o rotatable. Interpupillary distance adjustable between 55-75mm. Diopter adjustment ring on ocular provides correction for eye acuity | |||
| Eyepiece | EWF Eyepiece 10x (PAIRED) FOV 18mm. | |||
| Nosepiece | Reverse angle quadruple nosepiece revolves on ball bearing with positive indexing. Soft rubber knurled grip on nosepiece | |||
| Objectives | E-Plan achromatic 4x E-Plan achromatic 10x E-Plan achromatic 40x (SL) E-Plan achromatic 100x (SL) oil | |||
| Stage | Mechanical stage Size 125mmx135mm, supported on ball bearing guideways and having low positioned co-axial controls for stage movement. Cross movement 55mmX 75mm. | |||
| Focusing | Co-axial fine & coarse focusing control with ball bearing guideways based on four stage gear reduction system, free from any back lash & large knobs provide a soft & sophisticated touch to the microscope. | |||
| Condenser | Sub stage abbe condenser NA 1. 25 having a spherical lens, adjustable iris diaphragm and swing out filter holder. Flip type front lens condenser. | |||
| Illumination | Incorporates 6V/20W halogen lamp with adjustable iris diaphragm. | |||
| Packaging contents | Blue & Grey filters STYRO FOAM Molded pack |
Research Microscopes MP-5tr
