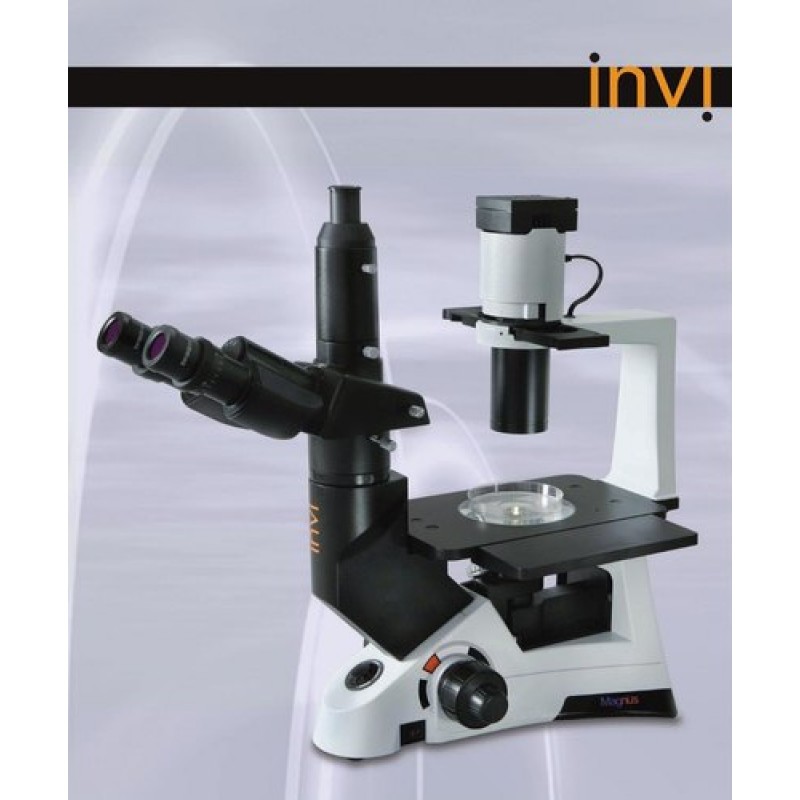

Magnus INVI Trinocular Microscope LED
Product Details:
Minimum Order Quantity | 1 Piece |
Brand | Magnus |
Magnification | Yes |
Light Source | LED |
Power Supply | 240 V Phase 1 |
Packaging Type | Box |
Features:
- Long Working Distance (LWD)
- Plan infinity optics
- Trincocular port in standard unit
- Pre-centered phase annulus
- 4x, 40x objectives & phase 10x, 20x as standard
- Field of view (FOV) 22mm with 10x eyepiece
- Optional Items: Phase 40x objective with 40x phase annulus, Attachable mechanical stage. Warm plate
Specifications:
Objective | LWD plan infinity objective | 4x/0.1 WD 18mm |
40x/0.6 WD 2.6mm (Cover Glass 1.2mm) | ||
LWD plan infinity phase objective | PH10x/0.25 WD 10mm | |
PH20x/0.4 WD 5.1mm | ||
Optional Items | PH40x0.6 WD 2.6mm (cover glass 1.2mm) phase contrast objective | |
Attachable mechanical stage, X-Y co-axial control,Moving Range 120mmx78mm | ||
Terasaki holder, 38mm dia petri dish holder, 54mm dia slide glass holder | ||
Warm Plate | ||
Magcam DC series digital camera attachment | ||
Time lapse recording system |
Additional Information:
- Delivery Time: 1-2 week
