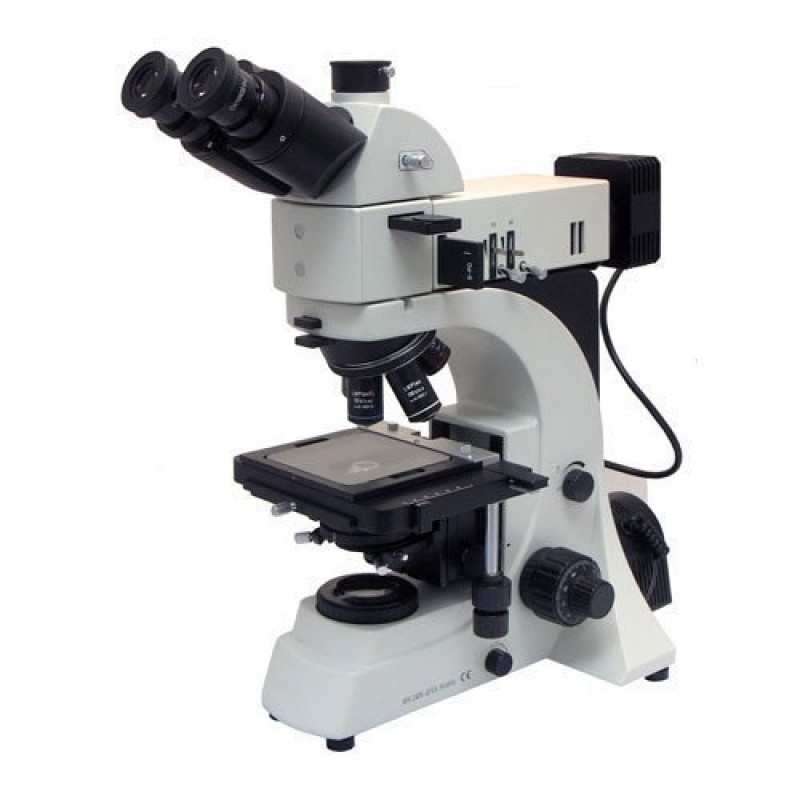

Metallurgical Microscope
product Details :
We are offering Metallurgical Microscope.
Specifications :
- Model : LT-MM-5
- Objectives : M10x, M20x, M40x & M80x
- Eyepieces : WF10x and 15x
- Magnification Range : 50X- 500X(Standard) 1000X (optional)
- Mechanical Stage : Co-axial mechanical square stage
- Size : 180 mm X 245 mm
- Magnification Changer : Quadruple, side facing nosepiece, with positive precision click stops
- Observation Tube : High transmission Trinocular head equipped with 45* inclined observation tubes and adjustable interpupillary distance.
- Illumination : Built-in Koehler’s incident illuminator with 6V 30W halogen automatic voltage sensing power supply
- Focusing : Low positioned, coaxial coarse and fine focus knobs with adjustable tension control
- Range of Travel : 9 mm total, 1.0 m up and 8mm down
- Fine Focus : 0.2 mm per revolution
- Camera Adaptor : C-Mount lens adaptor
Additional Information :
- Item Code: Mati
