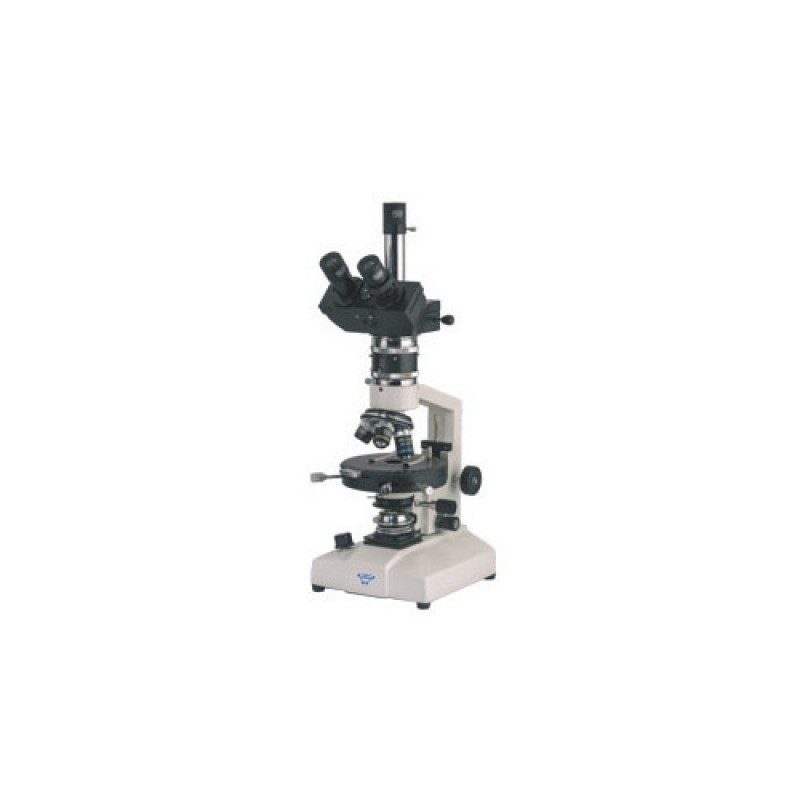

Metzer - M Trinocular Research Polarising Microscope
Product Details :
Magnification | 40x - 400x |
Observation | Trinocular 45 Degree, 360 Degree Rotatable, With Interpupillary And Diopter Adjustment |
Stand | A Rigid & Heavy Stand |
Stage | Compact Ball Bearing Center Able Rotating Stage 140mm Diameter , Graduated With Vernier , Lock And T |
Features:
- Focusing Coarse And Fine Focusing By Conveniently Placed Separate Knobs 1 Div. 0.002 Mm.
- Illumination Built – In Base 6v – 20w Halogen Light Source With Precentered Light Condenser.
- Condenser Sub Stage Abbe Filter Holder N.A. 1.25
- Condenser With Iris Diaphragm And Swing Out Filter Holder Focusable By Rack & Pinion.
- Nose Piece Quadruple Revolving Nose Piece With Positive Click Stops.
- Analyzer Equipped With A Bertrand Lens, Which Can Be Swung In And Out Of The Microscope Tube For Conoscopy Observation. Compensator Slot At 45˚ Accommodating 1/4 & 1/2 Wave Length Retarding Plates.
- Polarizer Polarizer Rotating And Graduated To 360 Degree
- Objectives Achromatic P4x, P10x, P40x (SL).
- Eye Pieces Wide Field 10x . & Wide Field 10x With Cross.
Additional Information:
- Item Code: METZ-888A
