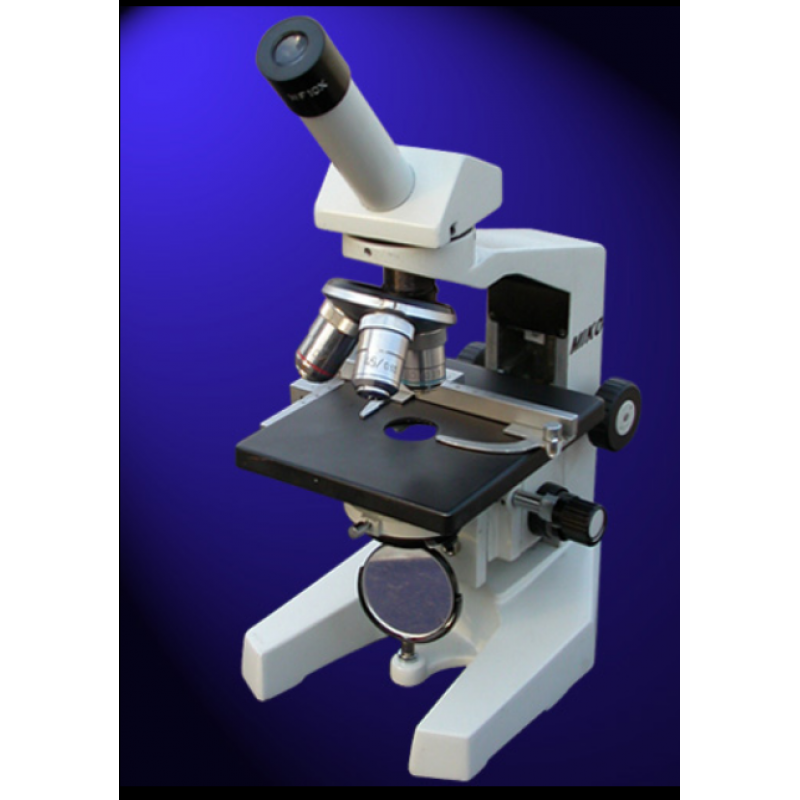

Miko Monocular Inclined Research Microscope Model VD-50-B

A rigid & heavy stand for perfect stability on Horse shoe base with observation tube inclined at 45 and rotatable in 360 with perfectly centered quadruple revolving nose piece. Nosepiece is precisely built on ball bearing to Provide life long smooth rotation and bring each objective to a perfect position every time for 'common field centre' through a built in positive click stop Totally Dust proof.

Fixed stage size 120x140mm with precision mechanical stage for x and y movement of slide upto 50 x 75 mm with graduated scales & verniers on both sides.

Substage bright field condenser NA 1.3 which is centrable in mount.



  • Optics Only best quality objectives and eye pieces are supplied to provide finest performance. These are parfocalised and Pre-Centered with each microscope after the most stringent tests.
  • Objectives 4x, 10x, 40x (SL) and 100x (SL) oil immersion
  • Eye Pieces Huy 6x, and WF 10x.
