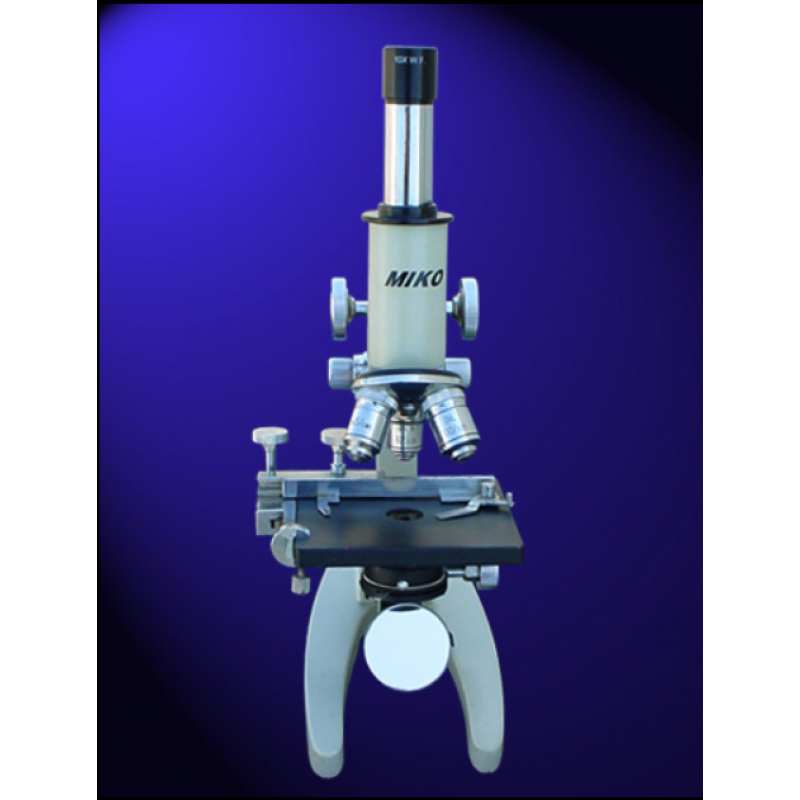

Consists of graduated straight Drawtube, Inclineable through 90 with separate coarse motion and graduated fine motion knobs. Quadruple revolving nosepiece with click stop. Fixed square stage 120 x 120 mm with mechanical stage having travel range 50 x 75 mm with graduated scales and verniers.
- Illumination Plano-concave mirror
- Condenser Abbe N.A. 1.3 with lris diaphragm focussing up & down by rack and pinion with day light filter.
- Objectives Achromatic- 4x, 10x, 40x(SL) and 100x(SL) Oil immersion
- Eye Pieces Hyg. 6x, 10x, 15x (any two)
