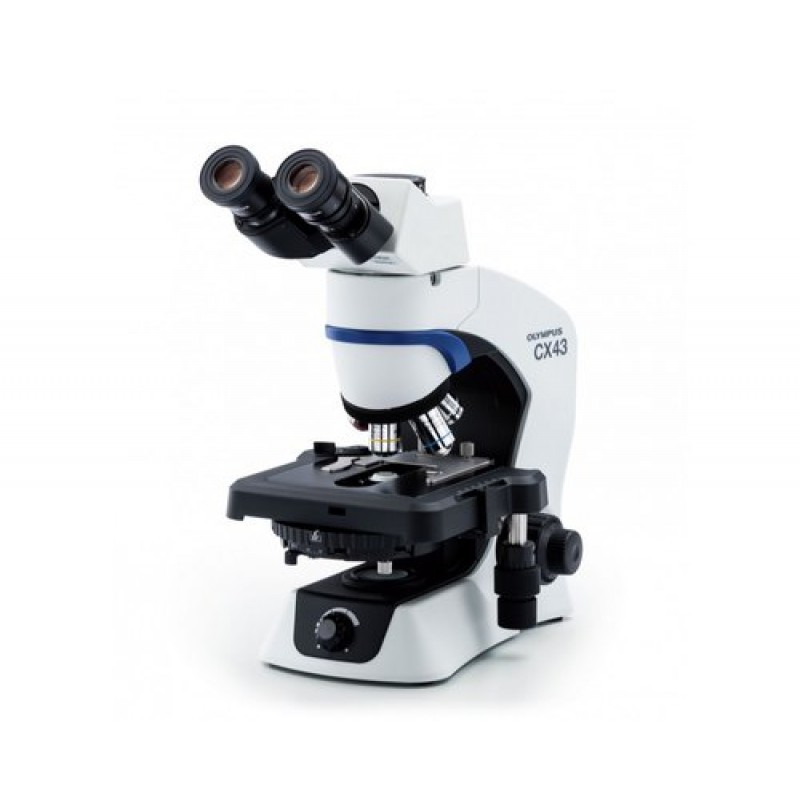

Olympus CX43 TR With Phase Contrast Trinocular Microscope

Product Details:

Brand Olympus

Model CX-43 TR with Phase Contrast

Olympus Imported Trinocular Phase Contrast Microscope ModelCX43 with universal infinity corrected UIS2 optical System, built in transmitted Precentered Koehler LED illumination, Co-axial coarse & fine focusing knobs on both sides with focusing stopper & torque adjustment for coarse adjustment knob, quintuple revolving nosepiece with inward tilt, anti fungal Plan Achromat objective 4X/ 0.10 W.D 18.5 mm, Plan Achromat Phase Objectives 10XPH /0.25 W.D. 10.6 mm, 20XPH /0.4 W.D. 1.2 mm, 40XPH /0.65 W.D. 0.6 mm (spring) & 100XPH/1.25 W.D. 0.15 mm (spring, oil), Rackless mechanism XY mechanical stage right-handle low position stage, Travelling range (X × Y): 76 mm × 52 mm, wire movement, single specimen holder, anti fungal Siedentopf design Trinocular observation tube inclined at 30° inclined with fixed light path of 50/50 (eyepiece/ camera port) having Interpupillary distance adjusting range: 48~75 mm, Widefield paired eyepiece of 10X (F.No. 20), universal Abbe condenser NA 1.25 with 7 turret position (including Bright field, Dark field (upto 40x), PH1, PH2, PH3) & built-in aperture iris diaphragm, Interference Green contrast filter, Centering Telescope, Power cord & dust cover.
