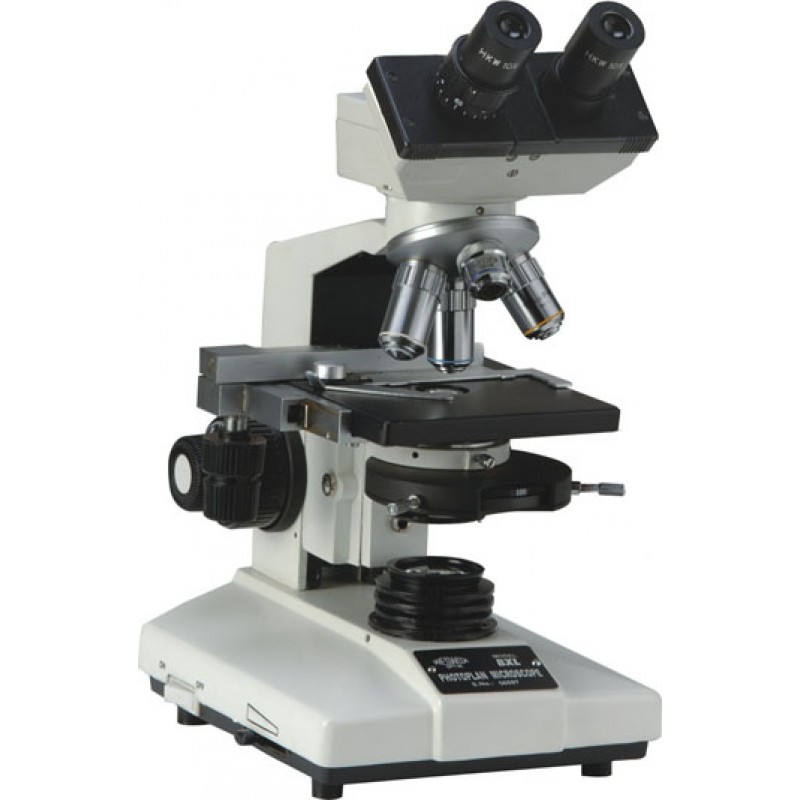

Phase Contrast Microscope
This Research microscope is essential when it comes to examination of living micro-organism, cells etc., permitting observation of the internal structure of such specimens under different degree of contrast.
Equipped with set of Four objectives Full Plan Achromats with Phase Annular Rings built inside matching with annular Phase plates provided in a substage condenser having a turret to bring in position the required Phase Rings suitable for the particular objective which is in position.
Specifications:
Warranty Information 2 Years parts.
1 year Electronics
Stand | Single mold sturdy stand with anti rust materials. Extended base for better stability | |||
Observation Head | BINOCULAR or TRINOCULAR head inclined at 45o and rotatable in 360o lockable at any angle. Both eyepiece tubes focusable to match objectives tube length. Interpupillary distance adjustments provided. | |||
Eyepiece | KEOWA H6x and HKW 10x (Paired) & one centering telescope eyepiece. | |||
Nosepiece | Quadruple ball bearing nosepiece with POSITIVE click stop & rubber grip. | |||
Objectives | Achromatic objectives 4x/NA 0.10 Ph, 10x/NA 0.25 Ph, 40x/NA 0.65(SL) Ph and 100x/NA 1.25(SL, Oil imm) Ph. | |||
Stage | MECHANICAL stage( Ball Bearing Type) of size 120x140mm having low positioned co-axial controls. Both X & Y axis having graduated scale & verniers reading to 0.1mm. | |||
Focusing | Co-axial fine & coarse focusing control with ball bearing guideways based on four stage gear reduction system, free from any back lash & large knobs provide a soft & sophisticated touch to the microscope | |||
Condenser | Focusable Abbe two lens type condenser NA 1.25 fitted with iris diaphragm and swing out filter holder with blue filter moving up and down through rack and pinion mechanism. | |||
Illumination | Built-in Base illumination with 6V-20W halogen lamp & intensity controlled power supply. | |||
Packaging contents | Packed in shockproof Styrofoam molded box or in a plywood cabinet having provision for placing eyepieces, objective Nylon Dust cover. Detachable power cord and 3-pin plug. |
Tension Control Ring | Enable you to adjust tension on coarse focusing knobs. |
Phase Contrast Attachment | Phase Annular Rings built inside matching with annular Phase plates provided in a substage condenser having a turret to bring in position the required Phase Rings suitable for the particular objective which is in position. |
Electricals | Built-in transformer with universal input 100v-240v ac. |
