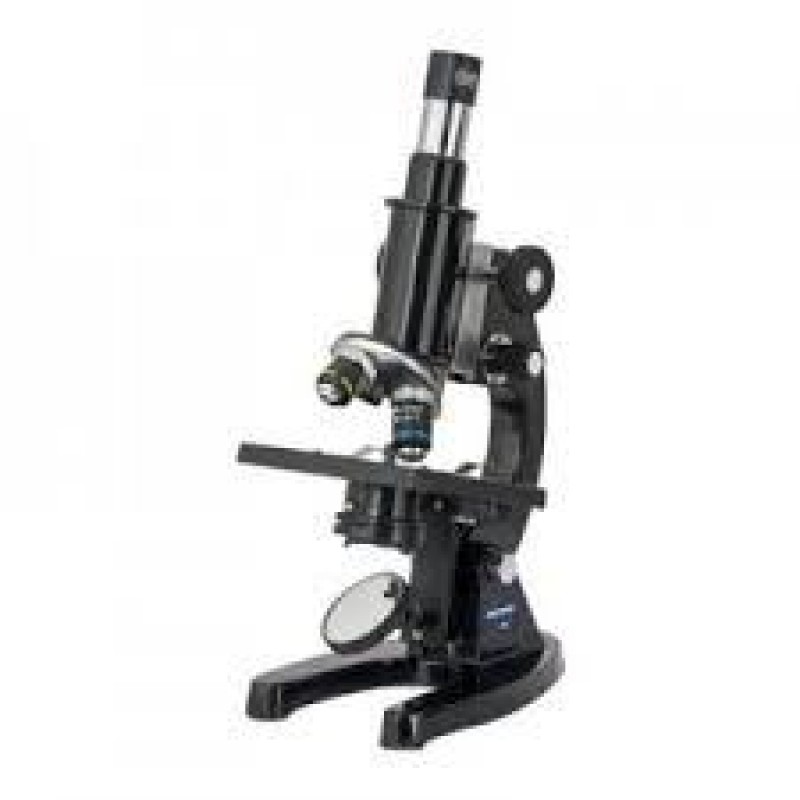

Specification
- Brand METZER
- MODEL METZ-36
- MAGNIFICATION 100X - 675X
- DELIVERY TIME 1-2 WEEKS
Description
- PRODUCT CODE : T/PRD/SMS/MET/001
- Magnification 100x – 675x
- Illumination Plano Concave mirror in fork mount replaceable by Sub stage microscope lamp.
- Objectives Achromatic 10x & 45x (SL).
- Eye Pieces Huygenian 10x & 15x or W.F. 10x.
- Stand Robust and stable inclinable through 90,˚Mechanical tube length 160 mm.
- Focusing Separate knobs for coarse and fine motion.
- Condenser Sub stage Abbe filter holder N.A. 1.25 condenser with Iris diaphragm and swing out filter holder.
- Stages Fixed square stage size 120 x 120 mm. with clips.
- Nose Pieces Dust proof triple revolving nose piece with positive click stops.
