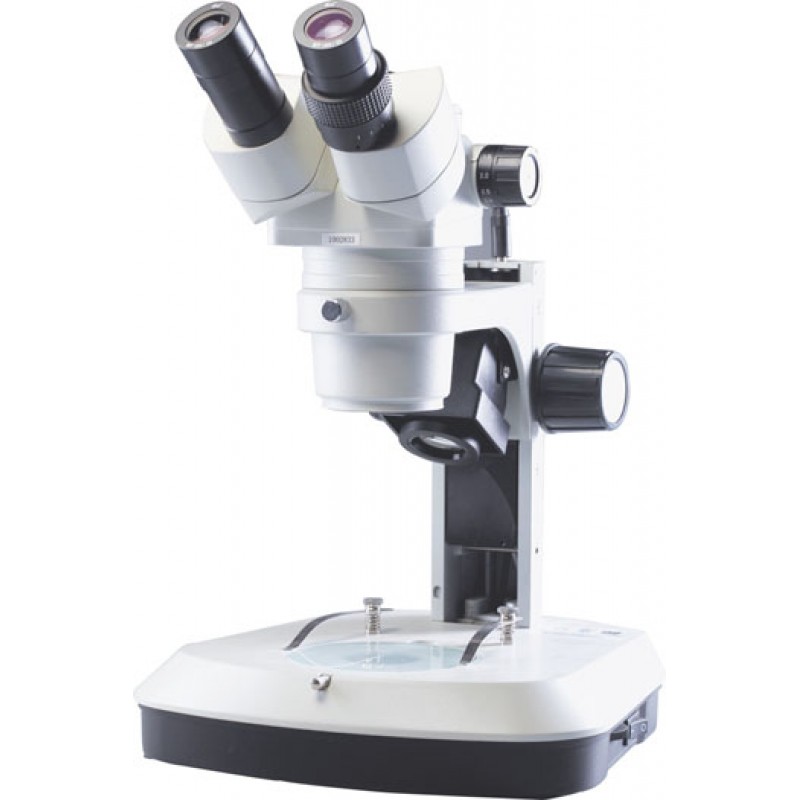

Stereozoom Microscope
SZM-100 offer users the most extended zoom range of any such instrument, along with modularity, comfort and ultra-high performance microscope optics.
Ergonomics stand with accessible,responsive zoom controls makes operation easier & less fatiguing than ever before.
Large focussing knobs and ball guide mecanism provide a smooth focussing throught the working range.
Dual light stand combining bright transmitted & incident illumination provides an evenfield of illumination.
Specifications:
Warranty Information 2 Years parts.
1 Year Electronics.
| Body | Single mold sturdy stand with anti rust materials. Incorporates Clip for holding specimen and lateral zoom control movement. |
| Base | 260mm X 290mm. |
| Illumination | Incorporates Inclined and transmitted light system with 12V- 10W halogen tungsten lamp. The system regulated with transformer has intensity control knob. On/Off switch to provide flexibility to use either both light or any of them. |
Magnification | 7X to 45X continuous | ||||||||
| Observation Head | Siedentopf Trinocular 45o inclined. Interpupillary distance adjustable between 55-75mm. Diopter adjustment ring on ocular provides correction for eye acuity. | ||||||||
| Eyepiece | Wide Field Eyepiece 10x (PAIRED) FOV 22mm | ||||||||
| Objectives | Zoom 0.7X to 4.5X with magnification ratio of 6:1 | ||||||||
| Working Distance | 98mm. | ||||||||
| Accessories (Optional) | Auxiliary Objectives 0.5x, 1.5x, 2.0x Fibre optic illuminator Micrometer Reticule Digital Cameras Polarizing and Dark Field Kits Industrial stands | ||||||||
| Packaging contents | Complete in a STYROFOAM molded box Dust Cover. |
Stereozoom Microscope SZM-100
