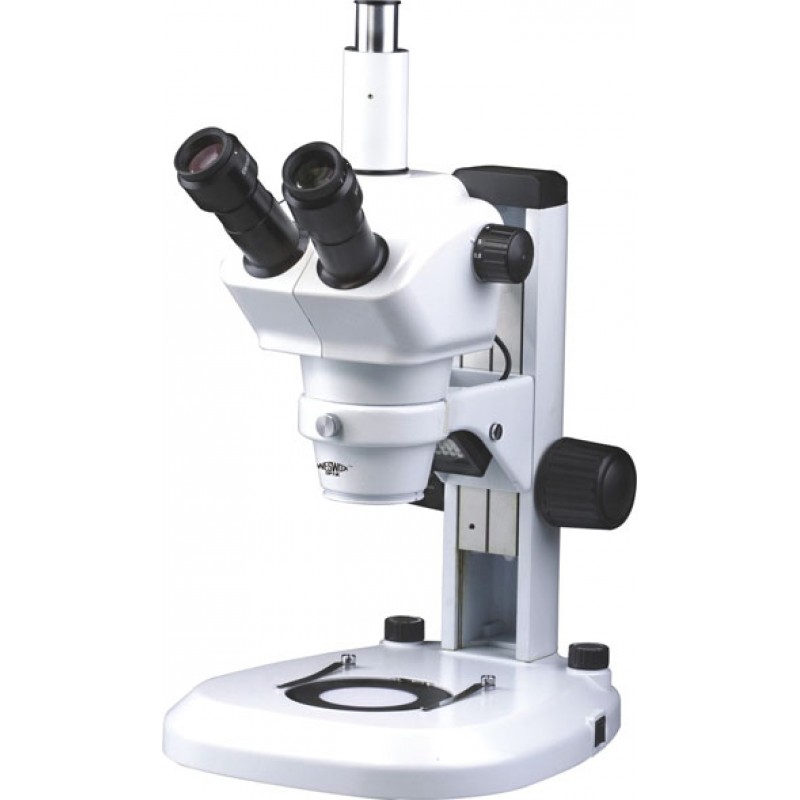

Stereozoom Microscope
STM-110 offer users the most extended zoom range of any such instrument, along with modularity, comfort and ultra-high performance microscope optics.
Built-in 3.1 MP camera for documentation purposes.
Common main objective optical system for continuous magnification.
Large focussing knobs & ball guide Mechanism provide a smooth focussing throughout the entire working range
Specifications:
Warranty Information 2 Years parts.
1 year Electronics
| Body | Single mold sturdy stand with anti rust materials. Incorporates Clip for holding specimen and lateral zoom control movement. | |||
| Observation Head | Siedentopf Trinocular 45o inclined. Interpupillary distance adjustable between 55-75mm. Diopter adjustment ring on ocular provides correction for eye acuity | |||
| Eyepiece | Wide Field Eyepiece 10x (PAIRED) FOV 22mm. | |||
| Built-in Camera | Built-in-head digital camera with sensor of 3.1 Mega Pixel, size ½ inch, Resolution: 2048 X 1536, Pixel Size: 3.2 x 3.2 microns, White balance:Automatic & Color filter: RGB 24 bit. | |||
| Objectives | Zoom 0.7X to 4.5X with magnification ratio of 6.5:1 | |||
| Working Distance | 98mm | |||
| Magnification | 7X to 4.5X continuous | |||
| Illumination | Incorporates Inclined and transmitted light system with 12V- 10W halogen tungsten lamp. The system regulated with transformer has intensity control knob. On/Off switch to provide flexibility to use either both light or any of them. | |||
| Packaging contents | Complete in a STYROFOAM molded box. Dust Cover |
| Base Size | 260mm X 290mm |
| Accessories (Optional) | Auxiliary Objectives 0.5x, 1.5x, 2.0x Fibre optic illuminator Micrometer Reticule Digital Cameras Polarizing and Dark Field Kits Industrial stands |
Stereozoom Microscope SZM-110
- Views: 489
-
The Western Electric and Scientific Works - Vendor Type: Manufacturer, Exporter
- Product Code: WESWOX0050
- Availability: In Stock
- ₹0
