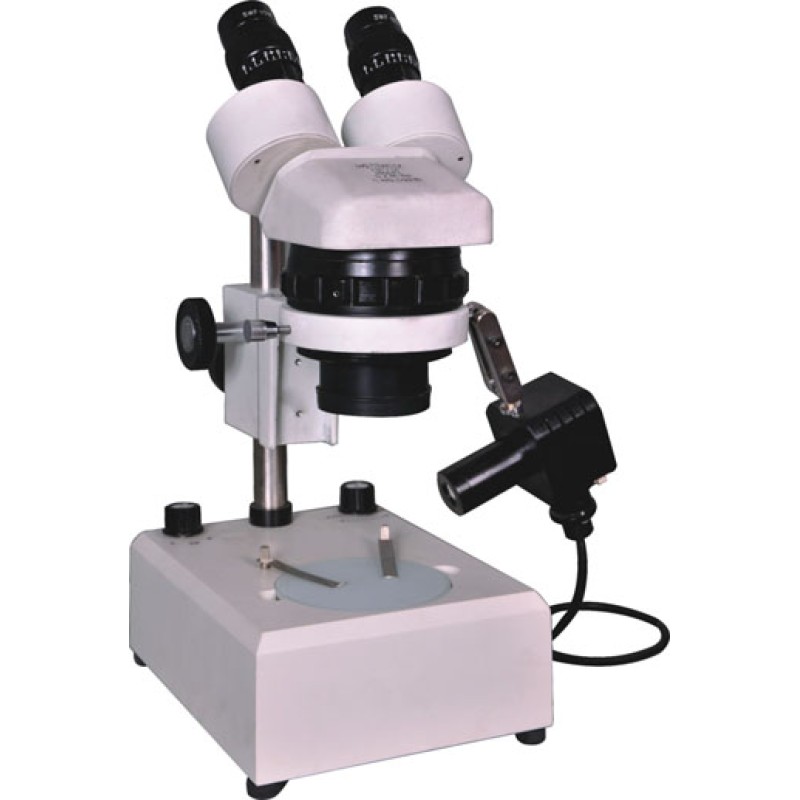

Stereozoom Microscope
"Latest three dimensional Zoom Microscope" STM-88 offer users the most extended zoom range of any such instrument, along with modularity, comfort and ultra-high-performance microscope optics.
Extra wide field eyepiece & parafocal zoom objectives to producecrisp distortion free three dimensional images.
Well designed pole stand with extension pillar provides high working distance upto 88mm.
Dual light stand combining bright transmitted incident illumination provider an even field of illumination.
Specifications:
Warranty Information 2 Years parts.
| Body | Latest three dimensional Zoom Microscope fitted on a modular rigid and well balanced stand designed for ease of operation and to ensure lasting optical alignment |
| Working Distance | WITHOUT AUXILLARY OBJECTIVE 88mm. |
| Accessories (Optional) | Extra pair of HWF-15x or 20x eyepiece SUPPLEMENTARY LENS ATTACHMENT 2x to increase the magnification range of above microscope from 7x-90x to 14x to 180x. |
| Illumination | Incident and transmitted light with variable light control built-in solid state transformer 6V-20W. Complete with Heat Absorbing Filters to safe guard specimens from heat |
Magnification | Range 3.5x to 160x depending upon Eyepiece and Auxillary Objective Lens. | ||||||||
| Observation Head | Binocular head, inclined 45o, rotatable 360o with diopter adjustment mechanism, Adjustable interpupillary distance from 52 to 75mm. | ||||||||
| Eyepiece | Extra Wide Field 10x (Paired) for large field of view, sharp and strain free image. 8x for photomicrography | ||||||||
| Objectives | Parafocal Zoom Objectives 0.7 x to 4x providing continuous variable magnification. | ||||||||
| Working Distance | WITHOUT AUXILLARY OBJECTIVE 88mm. | ||||||||
| Focusing | Highly sensitive focussing arrangement with rack and pinion control by big bakellite knobs. | ||||||||
| Packaging contents | Complete in a plywood cabinet. |
Stereozoom Microscope SZM-88
- Views: 255
-
The Western Electric and Scientific Works - Vendor Type: Manufacturer, Exporter
- Product Code: WESWOX0047
- Availability: In Stock
- ₹0
