Traveling Microscope

Product Details :

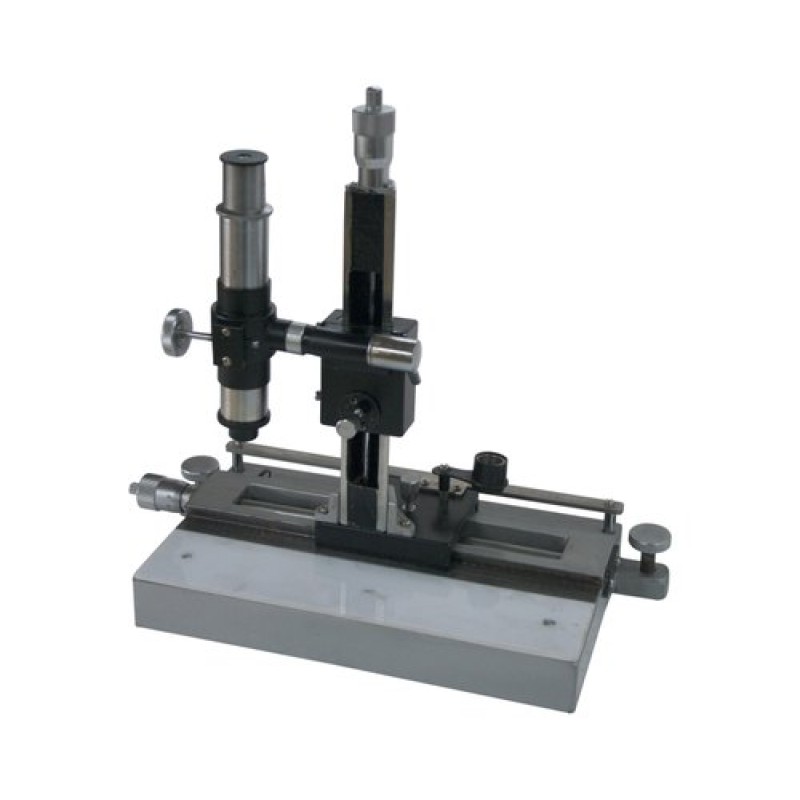

With horizontal and vertical scales. The bed is of cast  iron and accurately machined. The horizontal carriage is machined and inters ground on the guide ways of the  horizontal bed. The carriage is fitted with vertical brass  pillar carrying a microscope tube on a ground fitted  vertical carriage. The base is fitting with two levelling  screws Horizontal scale is 20cms and vertical 15cms.  Long. Both the horizontal scale and vertical carriages  are provided with slow motions, which travels app.  3cms in one traverse. Microscope tube is provided  with rack & pinion. A milk white Perspex platform is  provided on the horizontal bed. Vernier constant  0.001cms. Complete in well-polished wooden case.  Having stainless steel scale.

Additional Information:

• Item Code: RLPHY-206
• Delivery Time: 4-5 days
