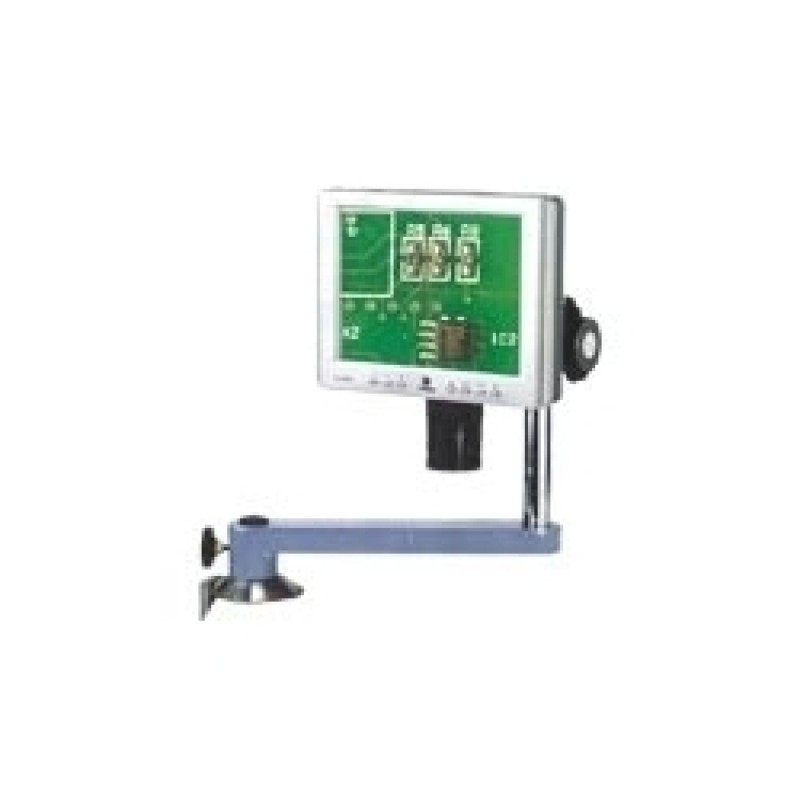

Video Microscope

Product Details :

CT series video microscope consists of optical microscope, CCD camera, and LCD display.A clear picture of tiny object could be seen with the Microscope, then, such picture would be grabbed and turned into video signal by the camera, and then, the video signal would turn into a digital colorful picture of high resolution on the LCD display. The digital picture can be zoomed in/out to the ideal size for watching, and it can also be sent via the USB 2.0 access to a computer for picture-grapping, saving, printing, and even partial photographing.

Feature:

• Pictures of the objects to be seen on the LCD display, convenient for multi people watching.
• Better working condition, less tiring, ergonomic,relive fatigue resulted out of long time working with traditional microscope.
• All in one design, easy to operate, space saving.
• Stemless zoom in/out.
• With scale graduation for measuring and orientation reference.
• Can be easily moved to another work space where it can be fixed.
• Can be connected to computer via the USB 2.0 access.(for CT-2200USB only)

Application:

PCB Manufacturing, SMD Industry, Micro-assembly & Soldering, Medical Device Manufacturing, Jewelery Industry, Fabricated Plate Work, Measuring Device, Inspection & Quality Control, Product Displaying, Education & Training, etc.

Parameter:

• Zoom range:10X-100X
• Working distance:100mm
• Length on x axis:250mm
• Height on y axis:62mm+230mm
• Weight for whole machine:Approx. 4.5kg
• LCD Displayer size:8(165mmx125mm)
• LCD Displayer Pixel:640x480
• LCD Displayer Lattice-site proportion:0.2535mmx0.2535mm
• Computer access:USB(CT-2200USB)

Additional Information:

• Item Code: BS-200-VM
